Overview

G05-01-00-00

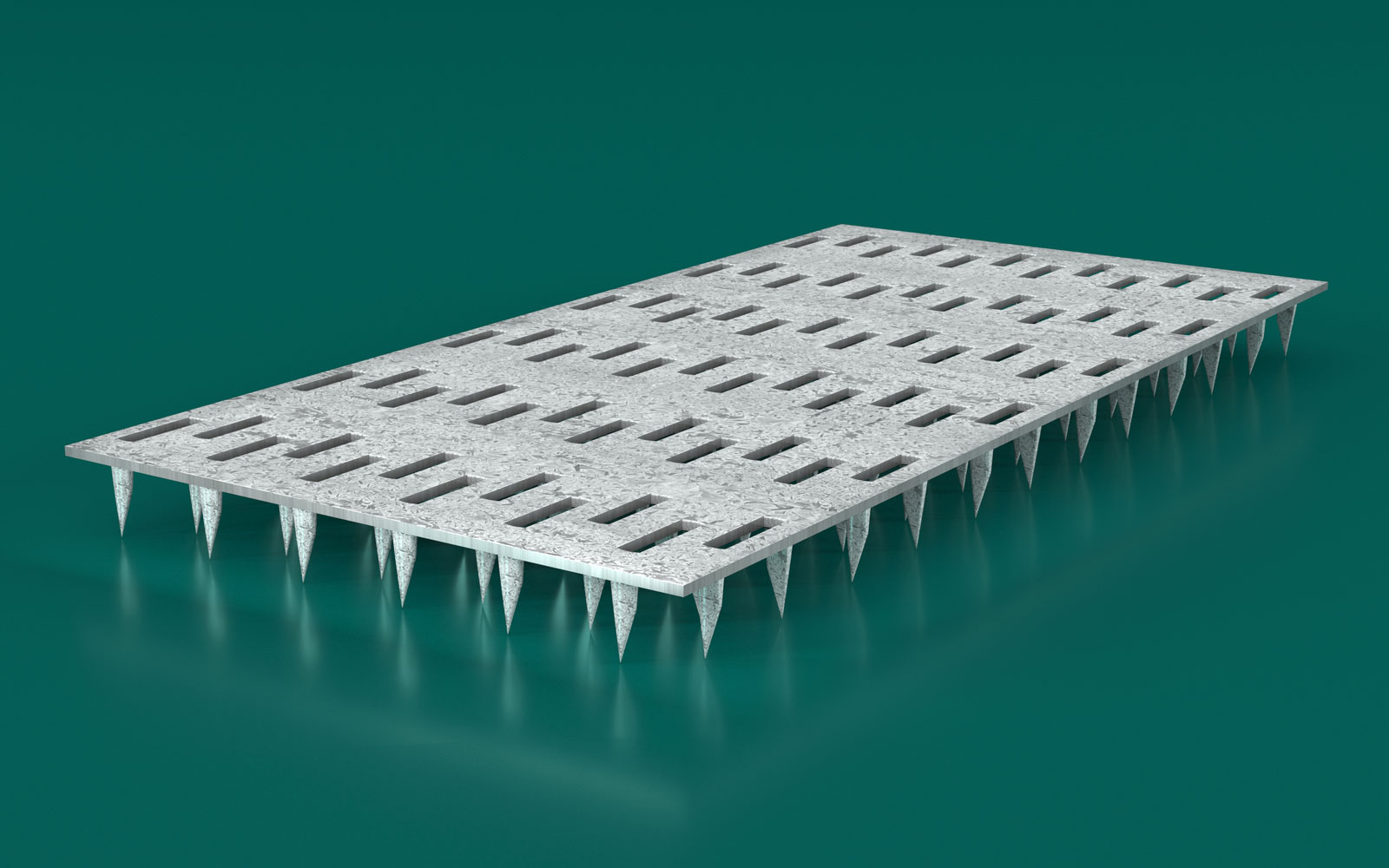

Formed galvanised steel connector designed to provide an effective means of fastening two timber members together under high loads.

These formed galvanised steel connectors:

  • Incorporate preformed teeth making it quick and easy to press into timber.
  • Teeth are spaced accordingly to eliminate timber splitting.
  • Twisted tooth provide reduces tooth withdrawal.



NAILPLATES

Multinail nailplates incorporate many refinements, particularly in the tooth profile and size, that is designed to grip the timber more securely.  The bending and twisting of teeth during manufacture was carefully designed to aid the transfer of forces across the finished joint.

The nailplate is the ideal choice of fabricators for the joining of multiple timber members as they are designed to provide excellent holding power (with eight teeth per square inch) at a low cost per truss.

Nailplate have a uniquely-designed tooth shape that gives the nailplate full penetration and holding power

TYPICAL APPLICATIONS

Roof Trusses

Roof Trusses

Roof Trusses

Floor Trusses

Butt Joining

Butt Joining

FEATURES

  • Long teeth
  • Low plate cost per truss
  • Penetrates high density hardwoods
  • Eliminates tooth bending and wood splitting
  • High force transfer per unit area
  • High holding power in hardwoods and softwoods
  • Prime quality galvanised steel

DESCRIPTION AND PACKAGING

Manufactured from 1.0mm Galvanised G300 Z275 Steel

Product Code Size (W x L) Carton Quantity Carton Kg.
MN2575 25 x 75 x 1.0mm 660 11.2
MN38100 38 x 100 x 1.0mm 440 14.6
MN50100 50 x 100 x 1.0mm 300 13.2
MN50150 50 x 150 x 1.0mm 200 13.2
MN64100 64 x 100 x 1.0mm 240 13.3
MN64150 64 x 150 x 1.0mm 140 11.8
MN64200 64 x 200 x 1.0mm 100 11.3
MN75100 75 x 100 x 1.0mm 200 13.0
MN75125 75 x 125 x 1.0mm 100 8.4
MN75150 75 x 150 x 1.0mm 192 18.8
MN75200 75 x 200 x 1.0mm 136 17.5
MN75250 75 x 250 x 1.0mm 104 17.0
MN75300 75 x 300 x 1.0mm 96 18.8
MN10075 100 x 75 x 1.0mm 150 10.1
MN100100 100 x 100 x 1.0mm 216 18.6
MN100125 100 x 125 x 1.0mm 146 15.9
MN100150 100 x 150 x 1.0mm 126 16.3
MN100200 100 x 200 x 1.0mm 92 16.0
MN100250 100 x 250 x 1.0mm 70 15.1
MN100300 100 x 300 x 1.0mm 64 17.0
MN100400 100 x 400 x 1.0mm 48 16.6
MN125100 125 x 100 x 1.0mm 154 17.1
MN125125 125 x 125 x 1.0mm 96 13.2
MN125150 125 x 150 x 1.0mm 96 15.1
MN125200 125 x 200 x 1.0mm 64 13.7
MN125250 125 x 250 x 1.0mm 48 13.2
MN125300 125 x 300 x 1.0mm 48 15.7
MN125400 125 x 400 x 1.0mm 28 12.4
MN150100 150 x 100 x 1.0mm 144 18.7
MN150125 150 x 125 x 1.0mm 84 13.6
MN150150 150 x 150 x 1.0mm 96 18.8
MN150200 150 x 200 x 1.0mm 64 16.8
MN150250 150 x 250 x 1.0mm 48 15.7
MN150300 150 x 300 x 1.0mm 42 16.5
MN150350 150 x 350 x 1.0mm 28 12.9
MN150400 150 x 400 x 1.0mm 28 14.7
MN175150 175 x 150 x 1.0mm 64 14.5
MN175175 175 x 175 x 1.0mm 48 12.7
MN175200 175 x 200 x 1.0mm 48 14.8
MN175250 175 x 250 x 1.0mm 48 18.2
MN175300 175 x 300 x 1.0mm 32 14.5
MN175350 175 x 350 x 1.0mm 24 12.9
MN175400 175 x 400 x 1.0mm 24 14.7
MN200200 200 x 200 x 1.0mm 52 18.2

Nailplates are used in the manufacture of timber roof truss, floor trusses and butt jointed timber members like roof rafters and floor joists.
