Anti Split Plate

Search

Overview

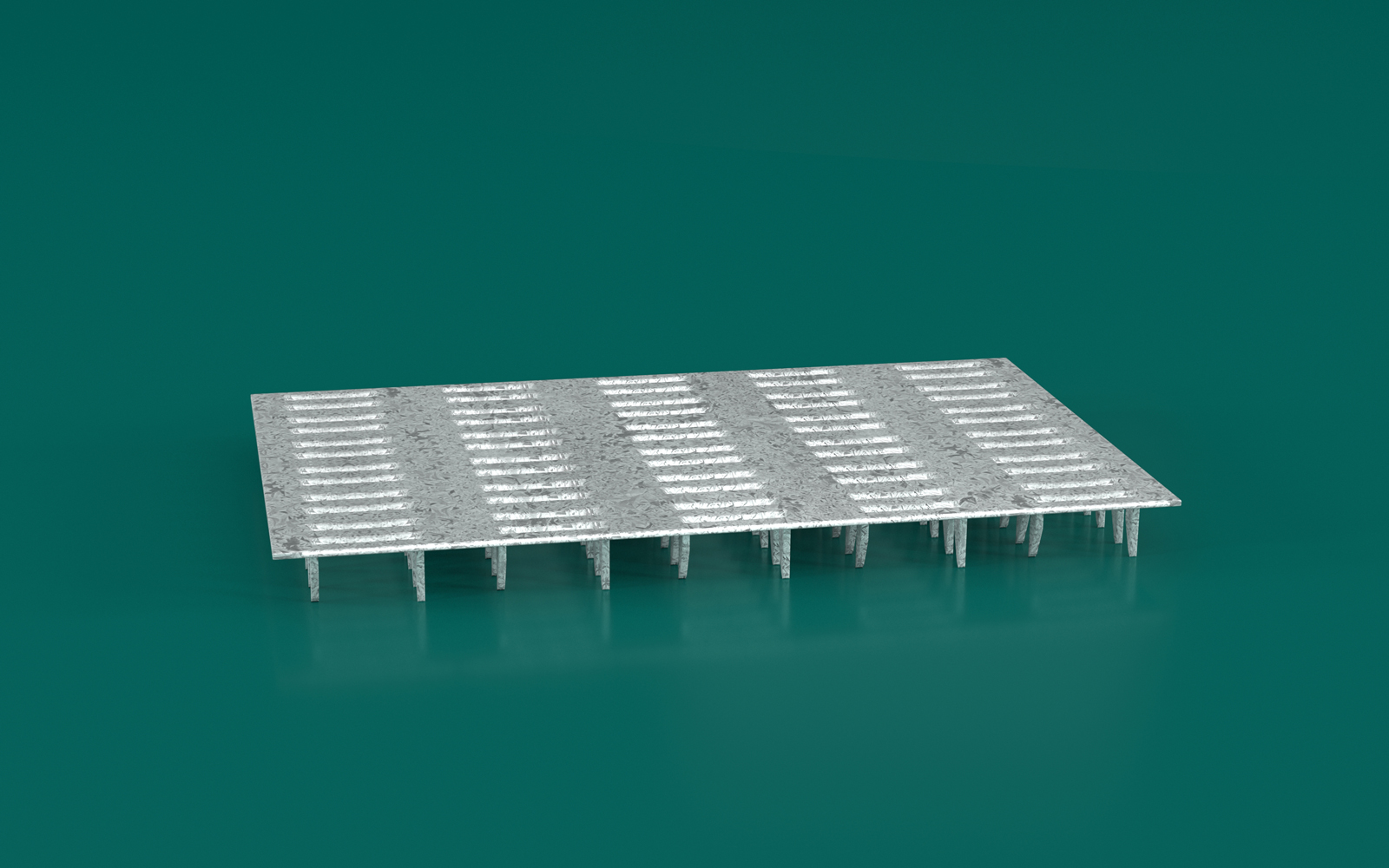

Formed galvanised steel connector designed to prevent timber splitting.

These formed galvanised steel connectors:

  • Incorporate preformed teeth making it quick and easy to press into timber.
  • Teeth are spaced accordingly to eliminate timber splitting.
  • Twisted tooth provide reduces tooth withdrawal.

APPLICATIONS

Anti Split Plates are pressed into the end grain of timber to help reduce the propagation of splits in timber.

They can also be applied to the face of timber members to reduce splitting which may occur around knots or with timber with sloping grain.

DESCRIPTION AND PACKAGING

Manufactured from 1.2mm Galvanised G300 Z275 Steel

Size (W x L) Product Code Carton Quantity Carton Kg.
MLS7550 75 x 50 x 1.2mm 400 15.2
MLS7575 75 x 75 x 1.2mm 200 11.9
MLS75100 75 x 100 x 1.2mm 200 10.1
MLS75125 75 x 125 x 1.2mm 100 10.1
MLS100125 100 x 125 x 1.2mm 144 18.2
