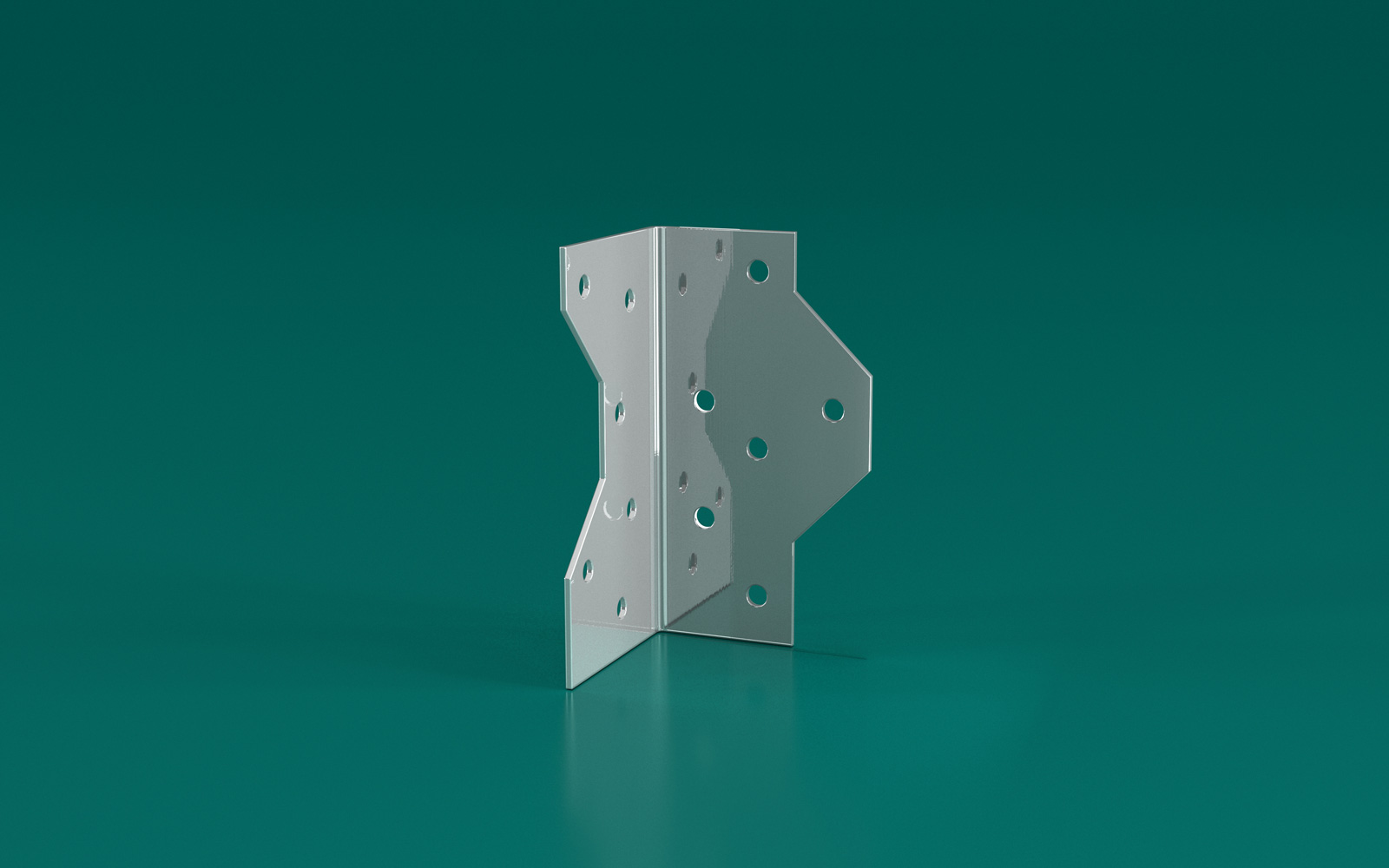

Stainless Steel Mini Grip

Search

Overview

G11-04-00-00

Multi use connecting ancillary used to simplify structural joining in timber roof, wall, ceiling and floor framing.

Ideal for:

  • Light timber to timber connections, i.e. timber pergolas, fences etc.
  • Reinforcing joints at right angles.
  • Joining timber components rapidly and efficiently.

TYPICAL APPLICATIONS

Multinail Stainless Steel Mini Grips should be secured with at least 4/30mm x 2.8Ø Multinail stainless steel nails.

Do not bend the grip when using.

LIMIT STATE DESIGN LOADS

Joint Capacity (kN) per Mini Grip
Dead load Dead load + Floor LL Dead Load + Roof LL Dead Load + Wind Load
J2 0.9 1.0 1.2 2.2
J3 0.6 0.8 0.8 1.5
J4 0.4 0.5 0.6 1.0
JD3 0.9 1.0 1.2 2.2
JD4 0.6 0.8 0.8 1.5
JD5 0.5 0.6 0.7 1.3

NOTE: The capacities are derived from AS1720-2010 and are for uplift in houses where failure is unlikely to affect an area greater than 25m2. For primary elements in structures other than houses or elements in a house for which failure would be greater than 25m2 these capacities must be multiplied by 0.94. For primary joints in essential services or post disaster buildings multiply by 0.88. The capacities are for structural joints for houses for which failure would be unlikely to affect a plan area greater than 25m2.

For 2/Mini Grips the table values can be doubled.

DESCRIPTION AND PACKAGING

Manufactured from 1.0mm Galvanised G300 Z275 Steel

Product Code Code Carton Quantity
TA005 500 15
30mm x 2.8Ø Multinail Stainless Steel Nails (SN30280)`
