PieceMaker

The latest evolution in saw technology.

POWER. SPEED. ACCURACY. SIMPLICITY.

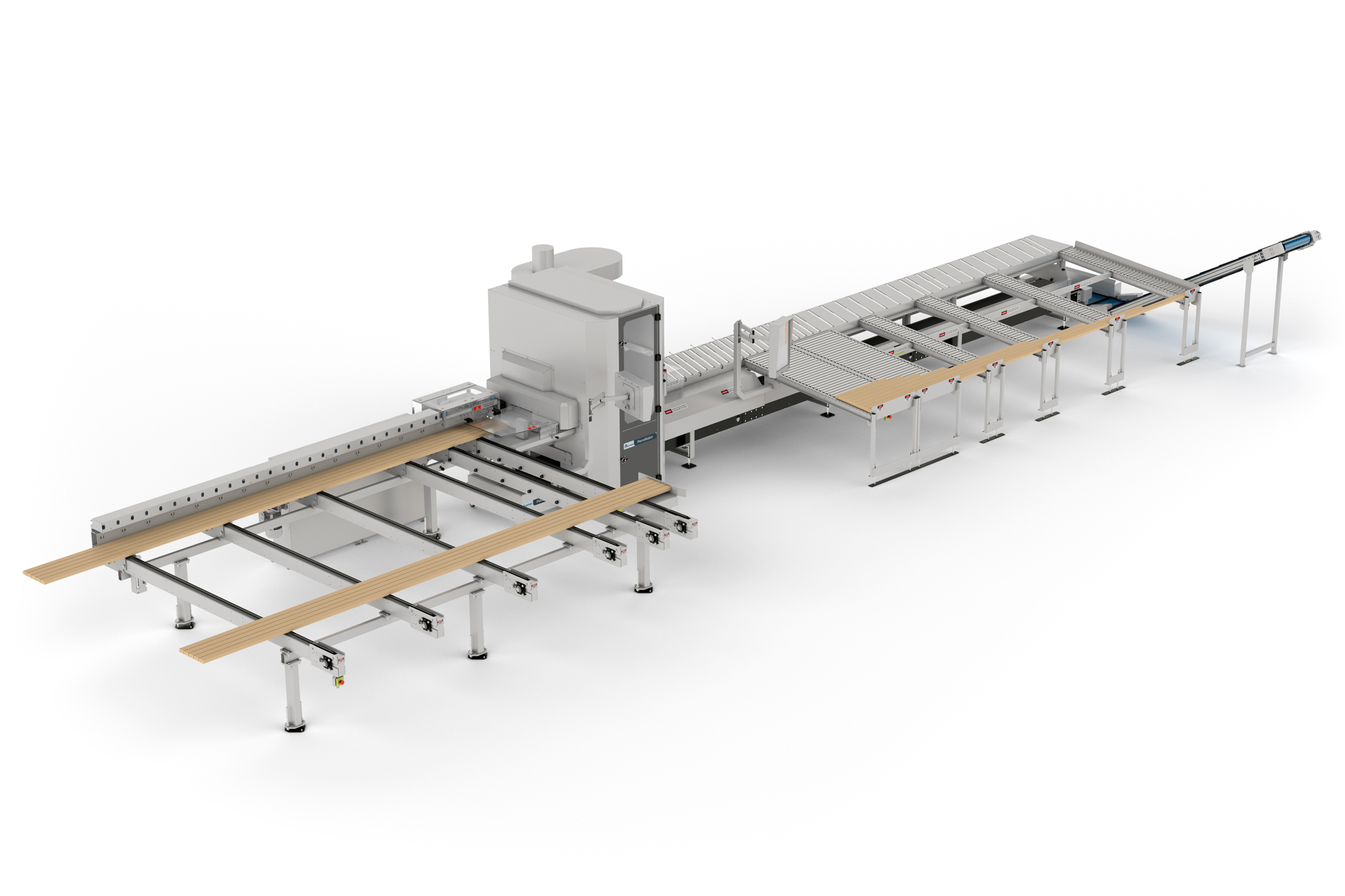

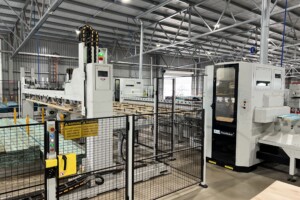

The PieceMaker is Multinail’s latest automated linear saw designed to feed, cut, print and eject multiple timber components from stock timber lengths. Cuts all truss members including mitres and birdsmouths.

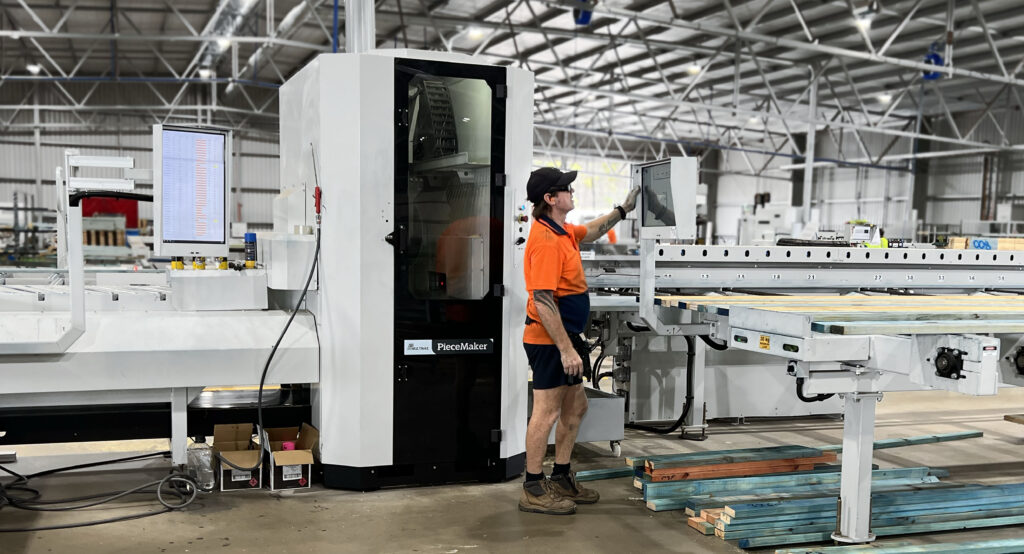

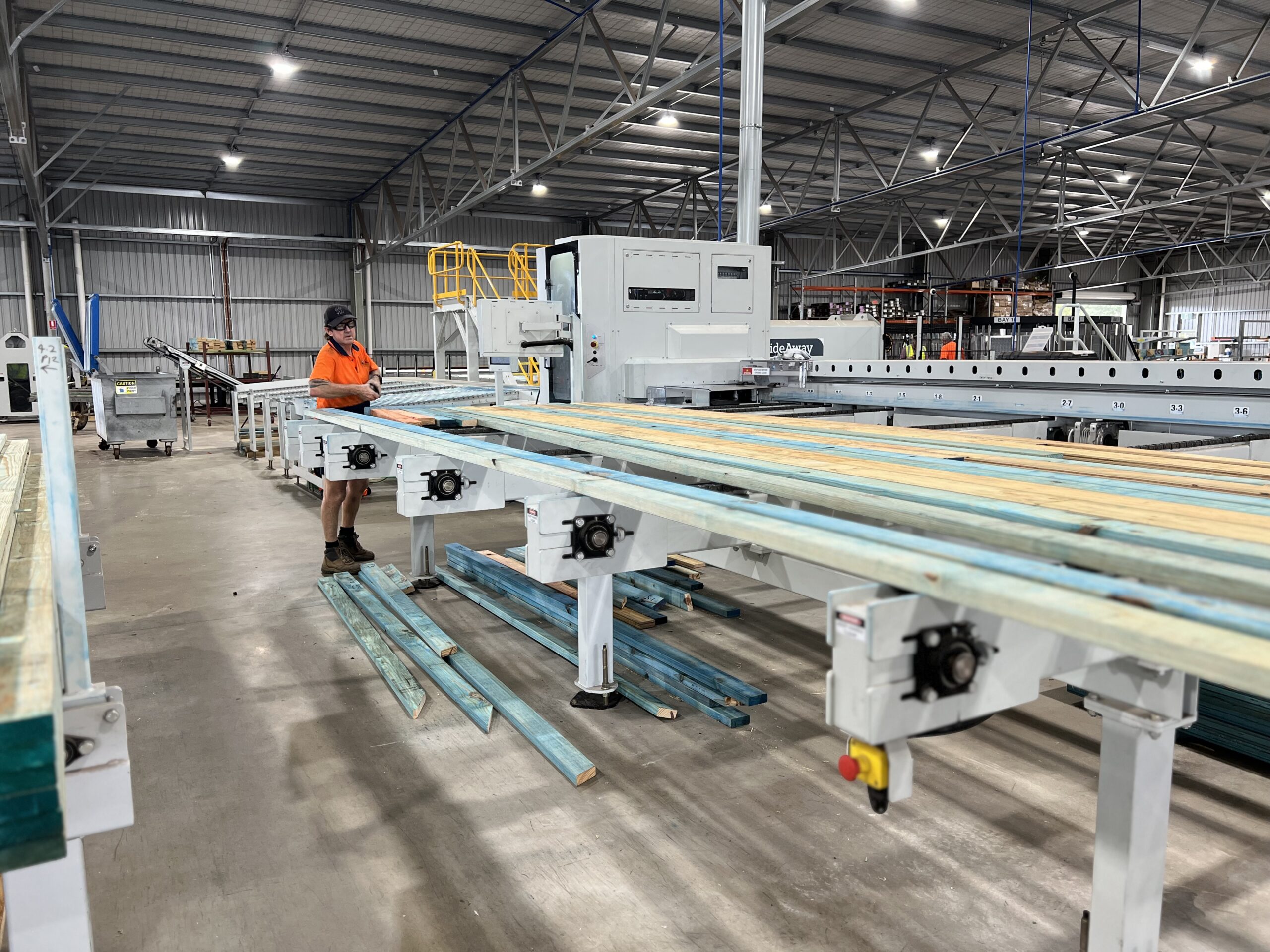

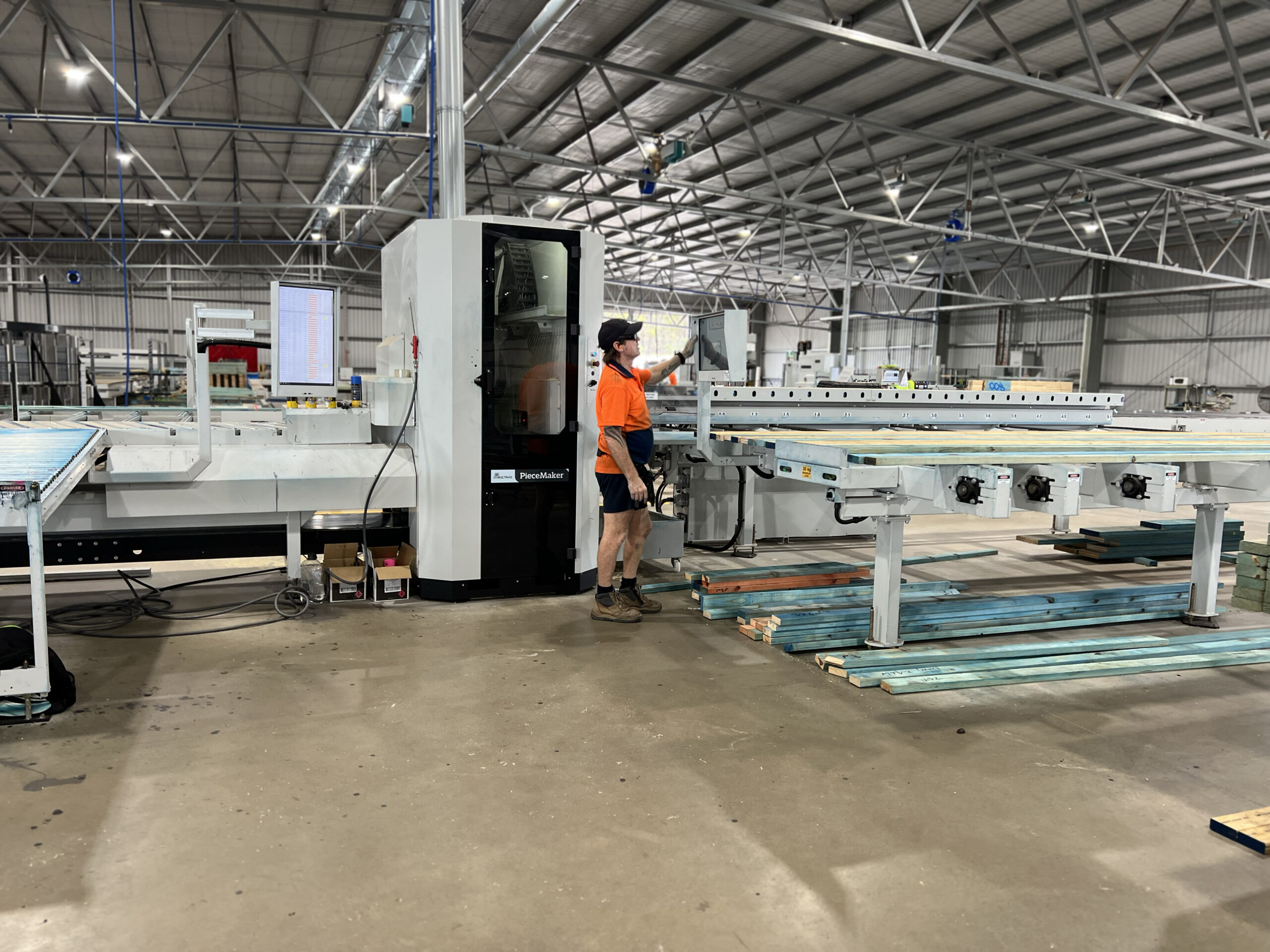

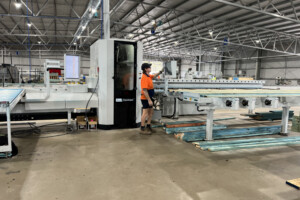

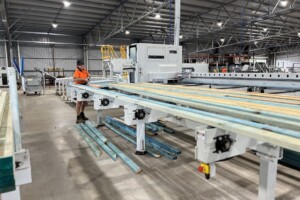

Check out the power, accuracy and speed of the PieceMaker in action at TrussCorp. Cutting in real time!
PieceMaker

Download Brochure

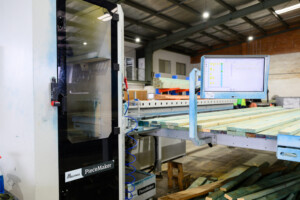

The PieceMaker is Multinail’s latest automated linear saw designed to feed, cut, print and eject multiple timber components from stock timber lengths. The saw cuts all truss members including mitres and birdsmouths.

“We’ve effectively halved the time it takes to produce the job. What would normally take a guy ½ day to prepare and cut is now done in a couple of hours.”

Errol Olive, Cutting Supervisor, TrussCorp.
Piecemaker

“Once you lose production in a plant like this, you can’t get it back. Having the guarantee and reliability of local based service and repairs for breakdowns is very important.”

Aaron Hillman, General Manager, TrussCorp
Piecemaker
http://www.multinail.com.au/wp-content/uploads/2019/05/Piecemaker-Fullwidth.jpg

PieceMaker Features

Bigger. Faster. Stronger.

Bigger. Faster. Stronger.

  • Significantly increases productivity
  • Reduces downtime
  • Work gets out to the floor much faster
Safer

Safer

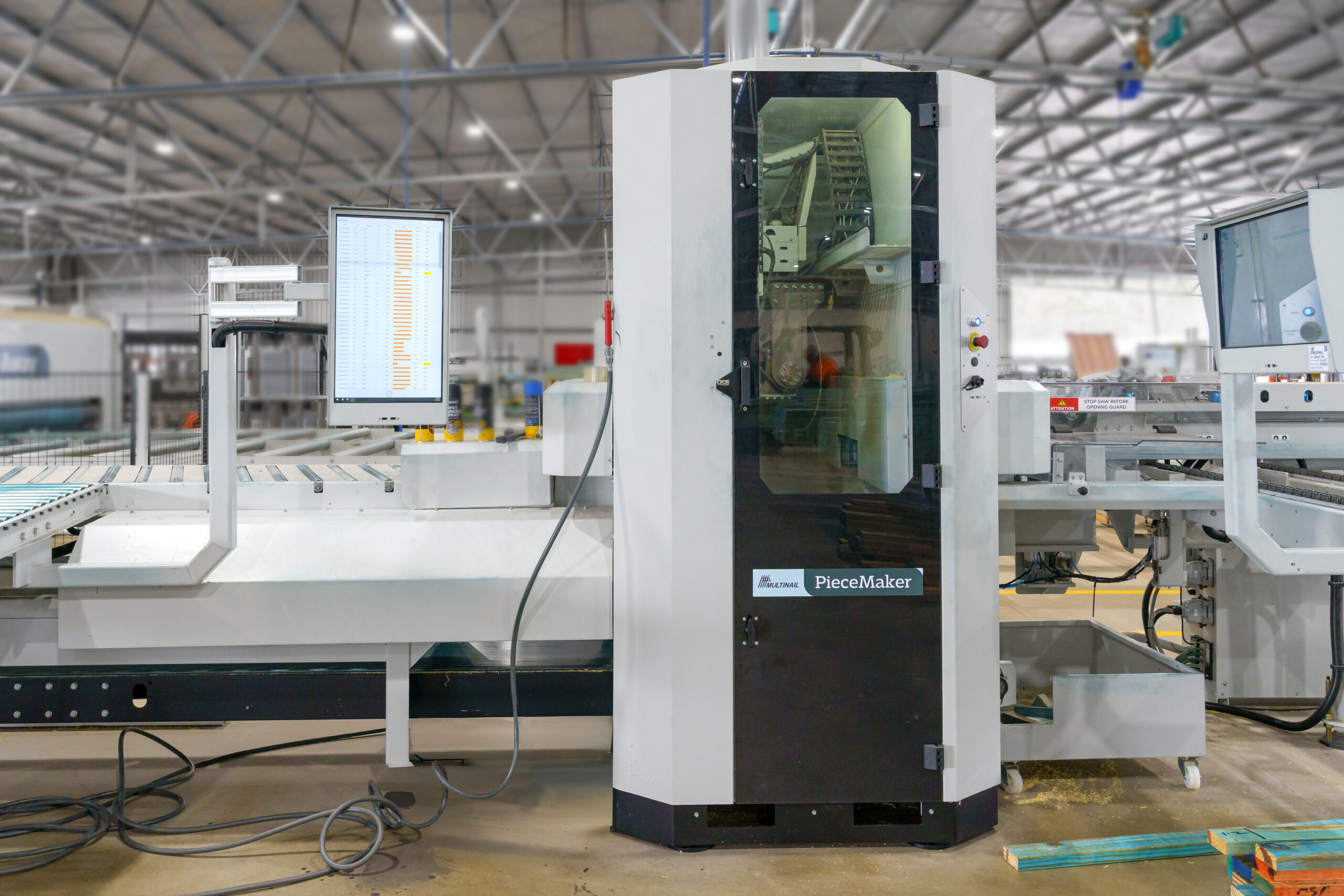

  • The Sawblade is fully enclosed offering a much safer working environment for the user
Reduces Administration

Reduces Administration

  • Requires less administration
  • Easier to optimise as the saw conforms to the business
Australian

Australian

  • Designed & built in Australia for the Australian Market
  • Local support and spares
  • Larger support base
Job and Timber optimisation

Job and Timber optimisation

  • Reduces waste. Cuts nogs from waste

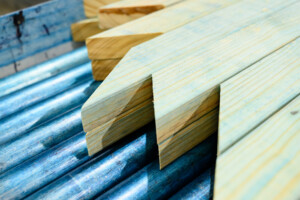

  • Mitre cuts – saves on handling & another machine
  • Has a built-in ‘Designer’ cut mode (the operator can configure without waiting for the detailer’s drawing)
More cost effective

More cost effective

  • Elegantly designed, less ‘stuff’ in it, simpler & more cost effective to maintain
  • No requirement for expensive maintenance contracts

Specifications

Cutting heads 1
Drive motor size 7.5hp
Blade size 450mm carbide tipped

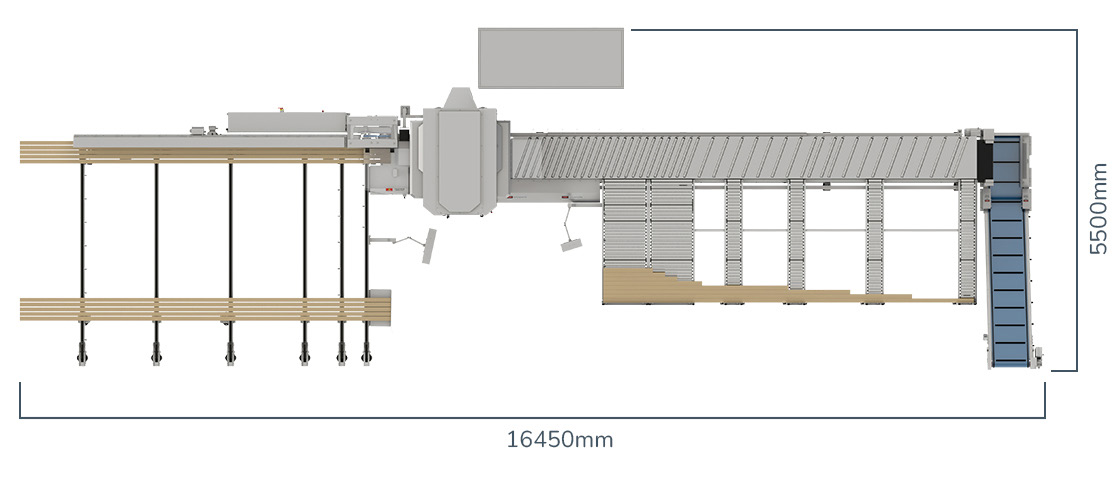

Infeed conveyor 6230mm L x 4060mm W
Outfeed conveyor 8581mm L x 2800mm W
Weight 4600kg (approximately)
Power requirements 63amp, 415v, 3 phase +N +E
Minimum finished length 1mm
Maximum finished length 6000mm
Timber height range 35mm – 100mm
Timber width range 70mm – 400mm
Minimum mitre angles 15 degrees
Minimum cut angle 2 degrees

Features

  • Supports all data down loads from
    all the major software suppliers

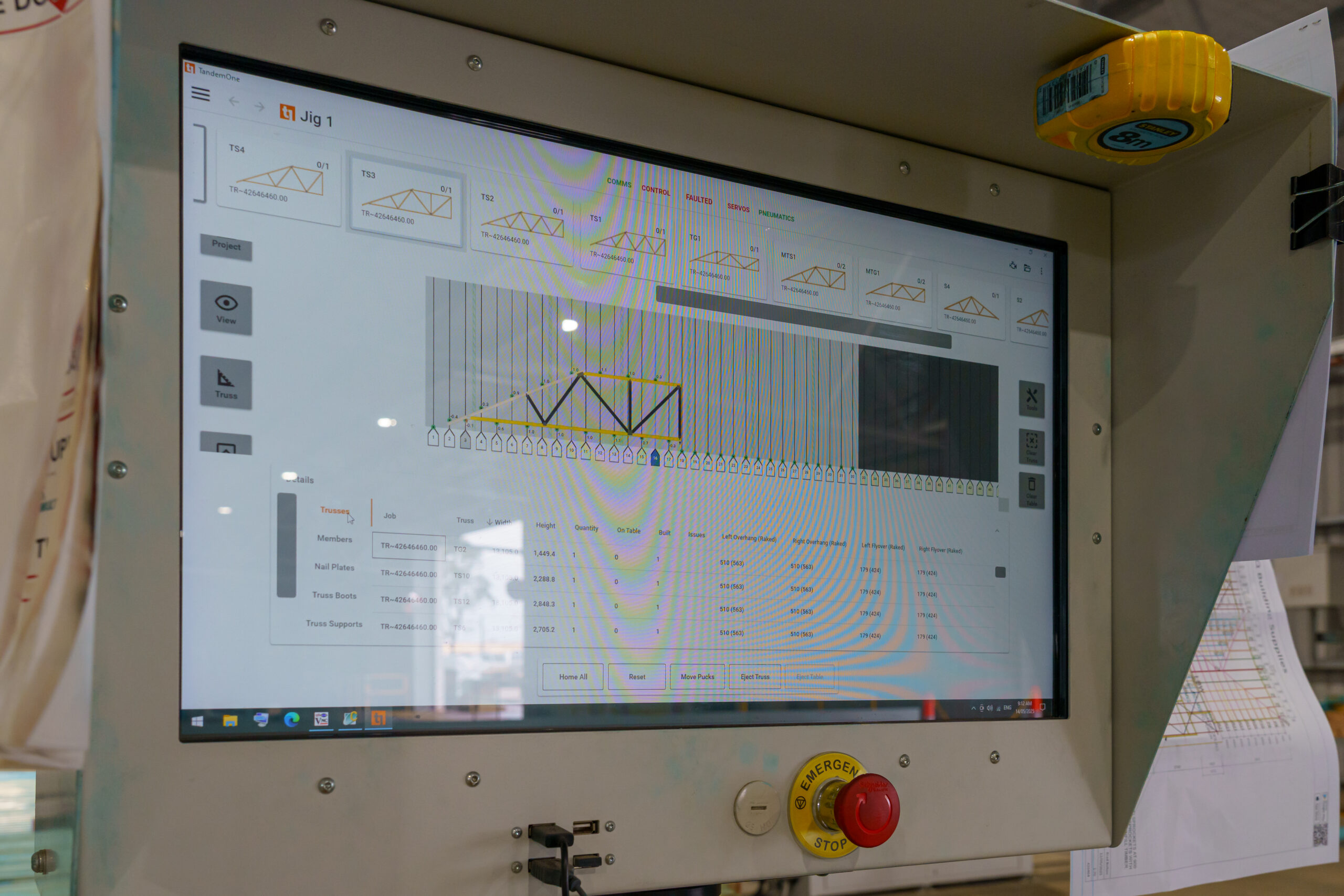

  • Operational software simple to use
    and train
  • Easy to calibrate

Standard Features

  • Dust extraction system
  • Waste conveyor

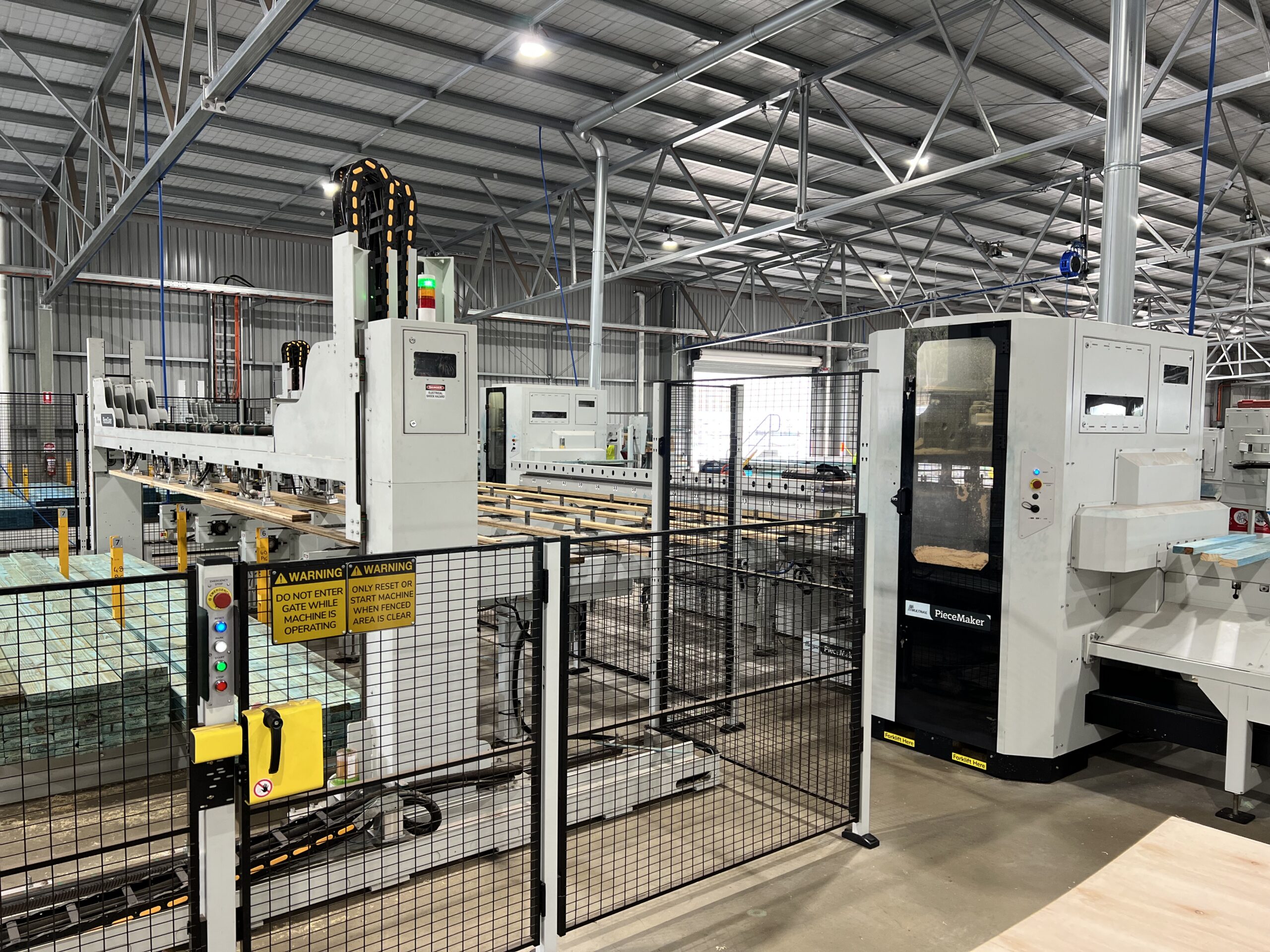

  • Full perimeter fencing
    (rear of machine)
  • Ink jet timber printer
  • Spares kit

Options

  • Left hand or right hand feed
