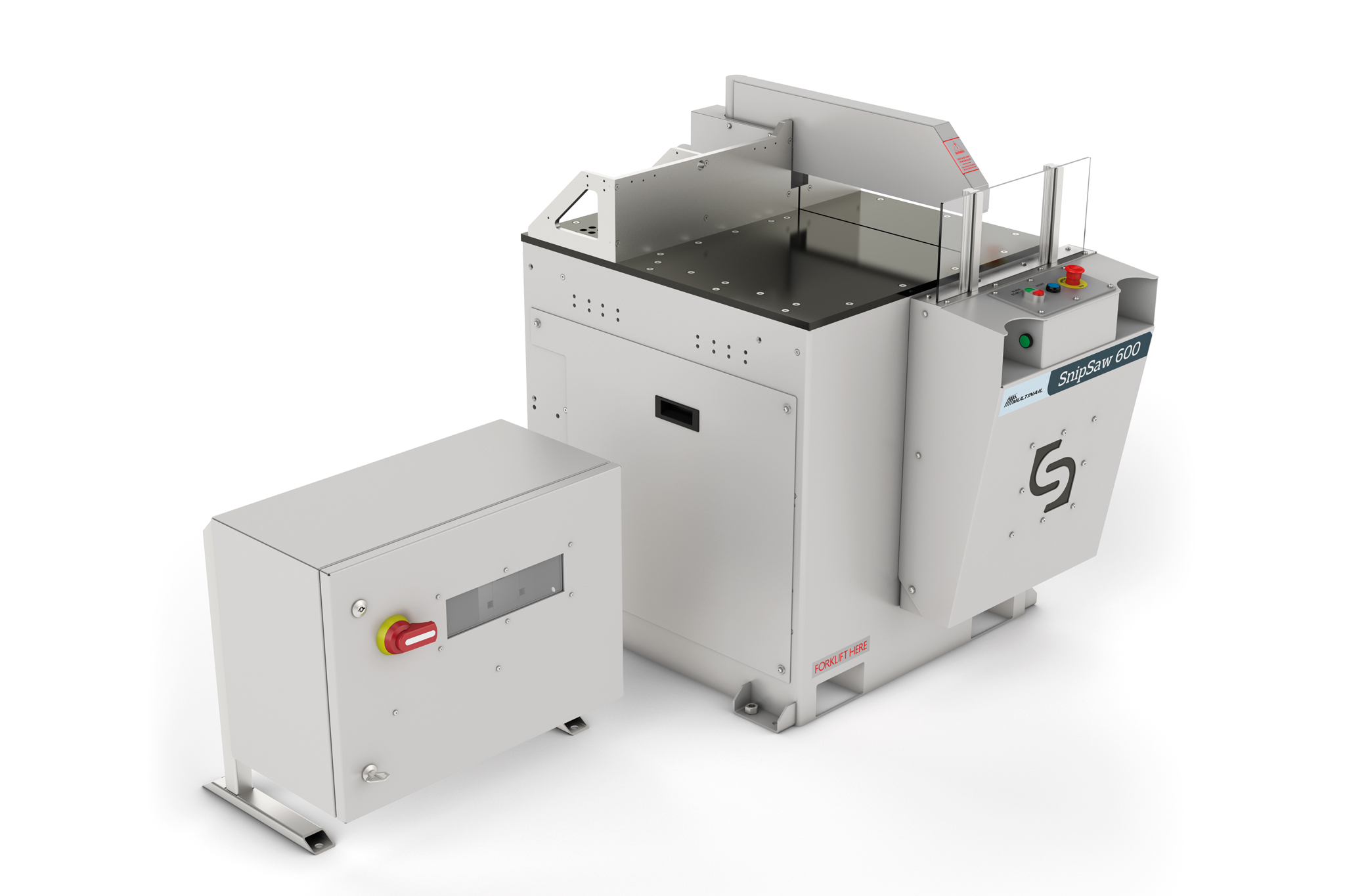

SnipSaw 600

Search

Overview

The Snipsaw 600 is designed to provide a pneumatically operated clamping and cutting cycle removing the operators hands from the cutting area.

Footprint

360°

Specifications

Overall Width 1160mm
Overall Height 1192mm
Overall Length 1190mm
Working Width 760mm
Working Height 870mm
Working Length 470mm
Weight 290kg
Material Feed Left or Right
Inner Guard Height 148mm
Length of Cut 400mm
Saw Blade 600mm
Saw Arbor 35mm
Arbor Motor 5.5 kW (7.5hp) 3 Phase
Power Requirement 25 Amp, 230-460V, 3 Phase
Air Supply 6-8 Bar (600-800 kPa)

Features

  • Automated and guarded saw; for accurate and safe cutting of timber components.
  • Components of various lengths can be cut with the saw, depending upon the table configuration chosen
  • Cutting envelope on 400mm x 100mm
  • Two hand cutting operation

Options

  • Tables configurations available in 3m, 6m, 9m, and 12m lengths. Customisable lengths are also available upon request.
  • Saw can be paired with any available type of table as required, automated or manual, in either a left or right configuration. E.g. Simple Stop, Rapid Stop, Roller table, etc.
