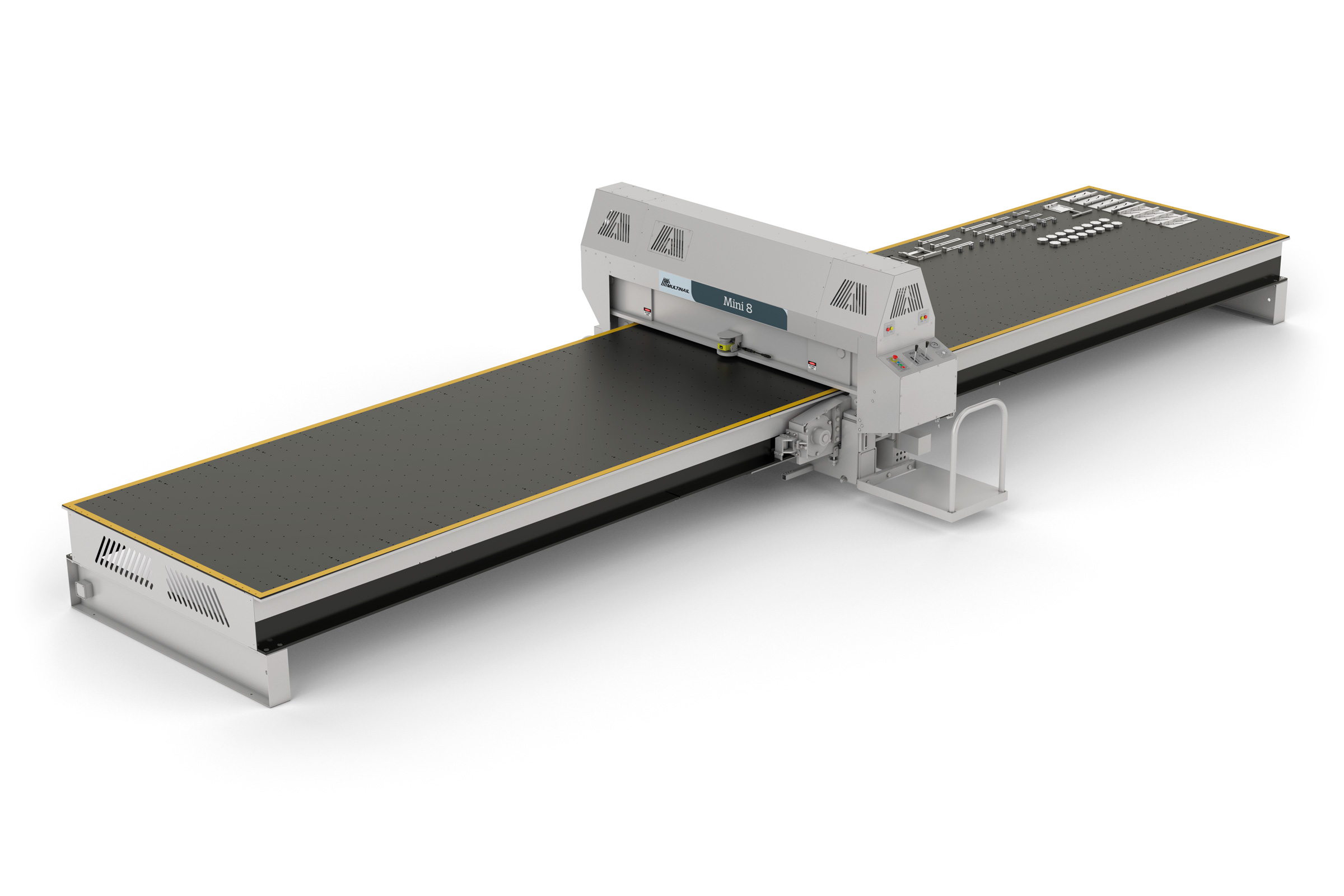

Mini 8

Search

Overview

The press head features a design that allows you to press full load off centre so you can utilise any part of the table to make any shape truss that will fit on the table.

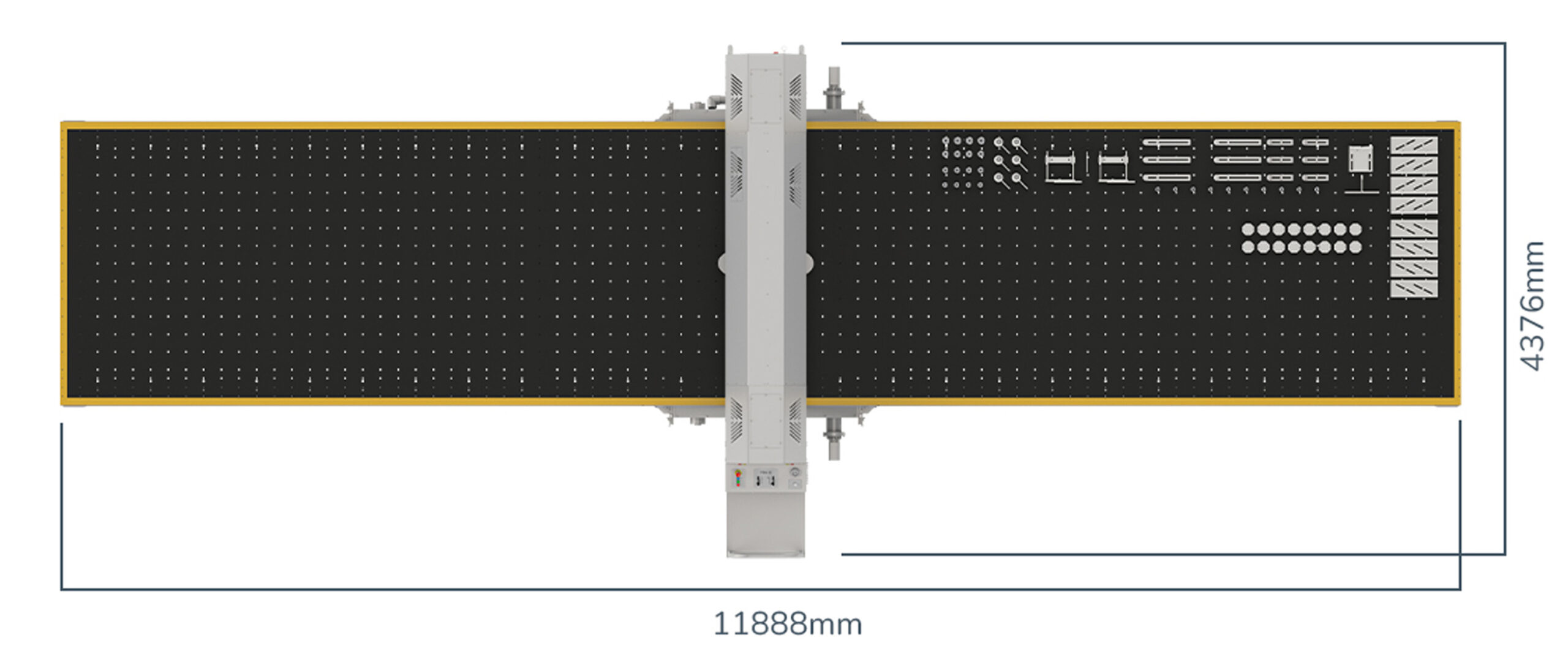

Footprint

Specifications

Press head travelling speed 1m / second
Press head capacity 40 tonne
Press head opening 145mm max 25mm min
Platen width 600mm
Pressing cycle 3 seconds
Motor 15hp
Table size 12.0m x 2.4m
Weight 9000kg (approximately)
Power Requirements 32amp, 415v, 3 phase +N +E

Features

  • Table size 11.8m x 2.4m (Standard table size)
  • Bolt on truss jigging included
  • Safety laser scanner
  • Ride-on carriage
  • Direct drive
  • Bell Crank pressing action
  • Tonnage boost buttons
  • Octobobbins- quick camber set up system

Options

  • Pneumatic floor truss jigging
  • Ride on carriage either side of table
