Overview

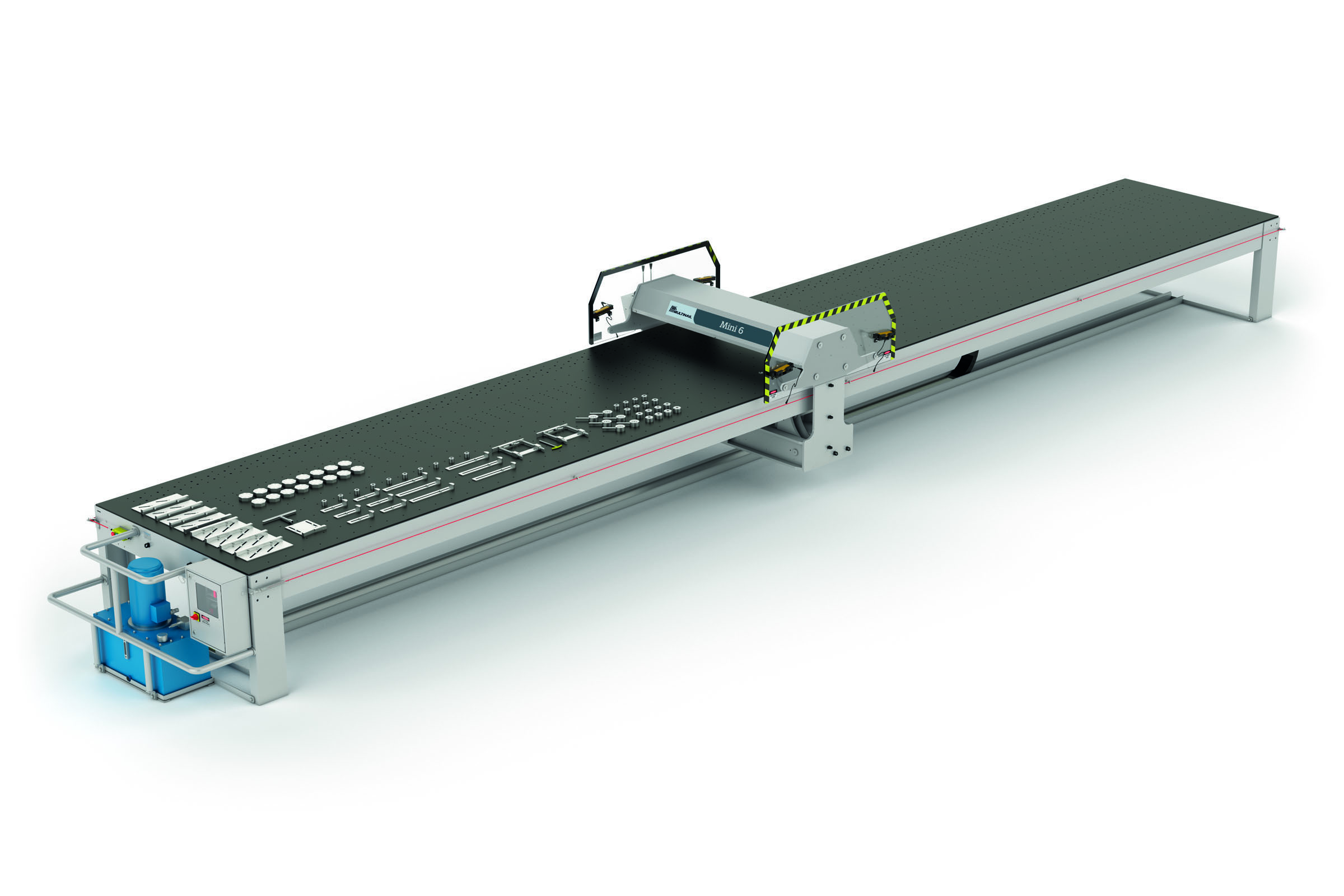

The press head features a design that allows you to press full load off centre so you can utilise any part of the table to make any shape truss that will fit on the table.

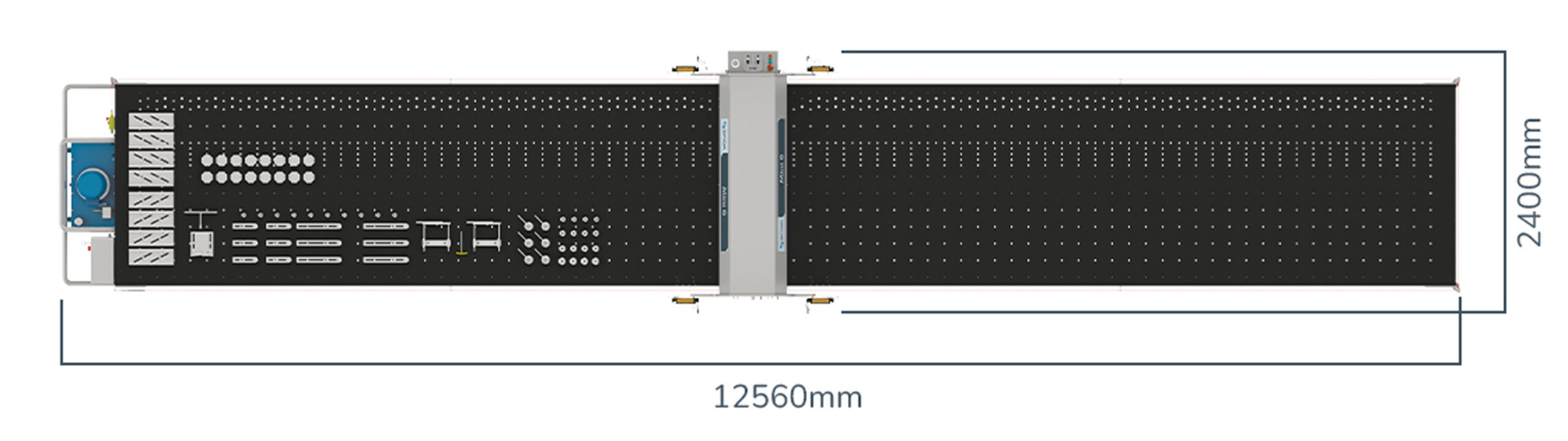

Footprint

Specifications

Press head travelling speed 1m / second
Press head capacity 30 tonne @ 1800PSI
Press head opening 150mm max 25mm min
Platen width 600mm
Pressing cycle 3 seconds
Motor 15hp
Table size 12m x 1.8m
Weight 5000kg (approximately)
Power Requirements 32 amp, 415v, 3 phase +N +E

Features

  • Table length 12m x 1.8m (standard Table size)
  • Bolt on truss jigging included
  • Safety laser beam
  • Manual truss jigging included
  • Bell Crank pressing action

Options

  • Customised table length (built to order)
  • Pneumatic floor truss jigging
