Mini 3

Search

Overview

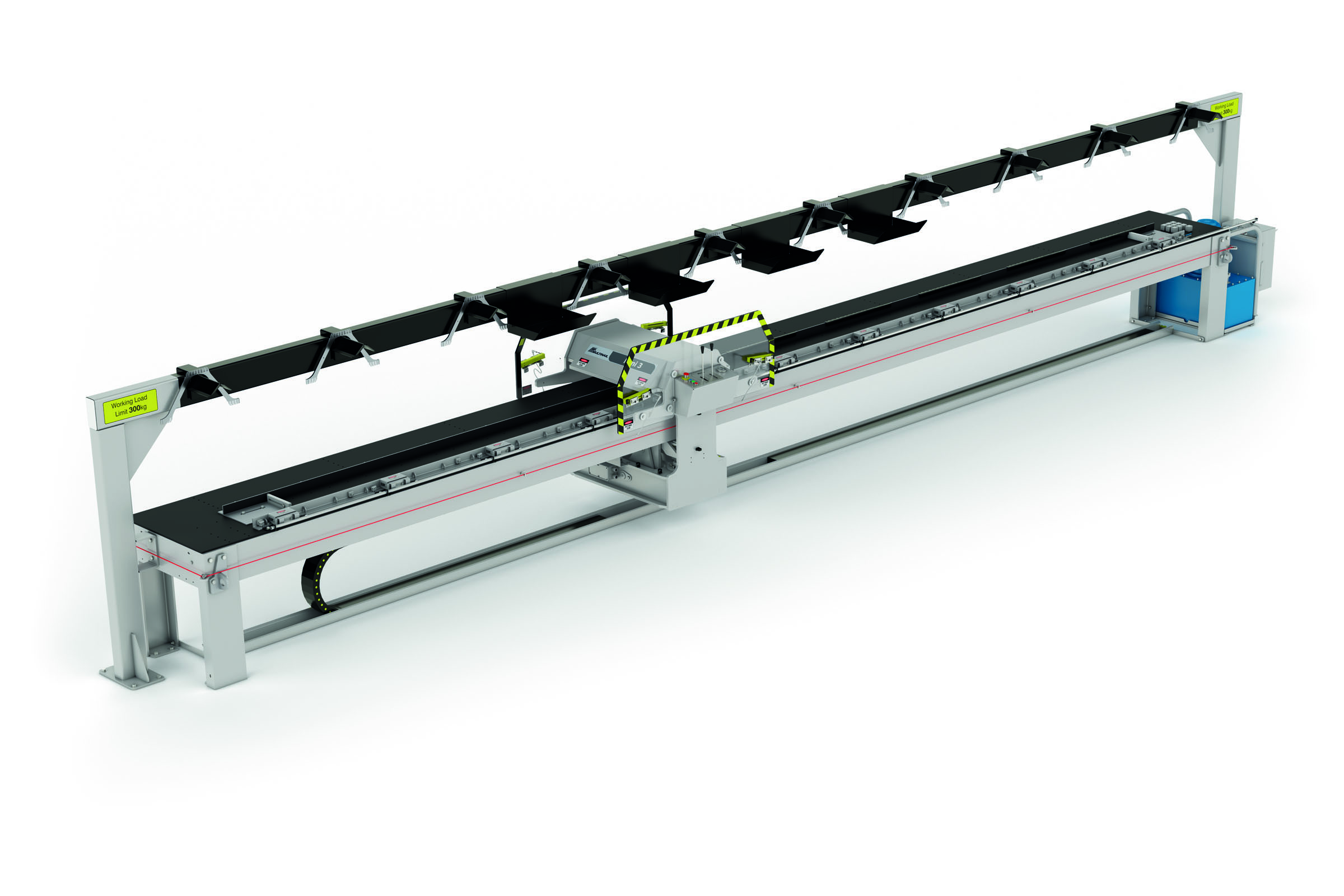

Ideal machine for pressing large quantities of all floor truss webs, including SteelWoods, EcoWeb, MultiStruts and Span Joist. With its large 800mm platen as standard.

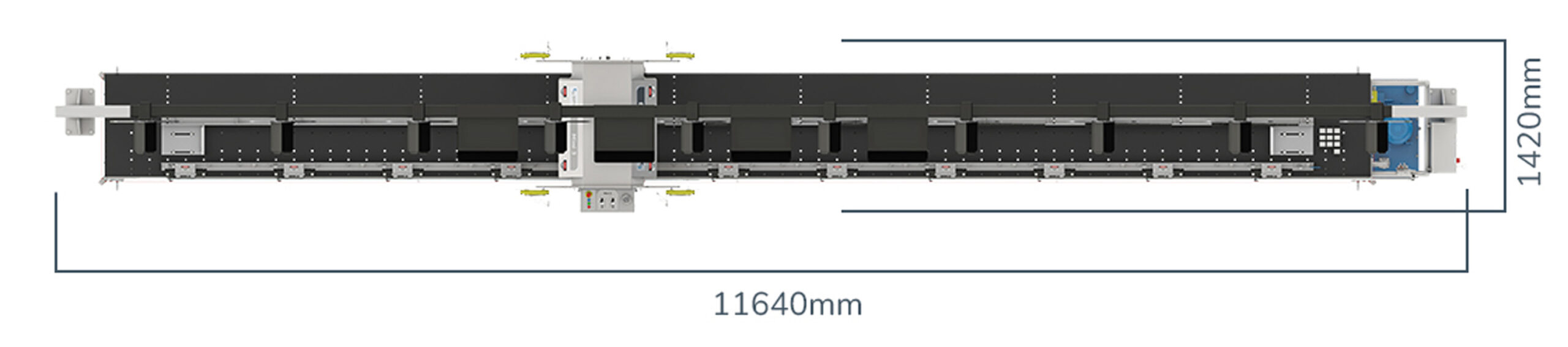

Footprint

Specifications

Press head travelling speed 1m / second
Press head capacity 30 tonne @ 1800PSI
Press head opening 130mm max – 25mm min
Platen width 800mm
Pressing cycle 3 seconds
Motor 15hp
Table size 10.5m x 860mm
Weight 3000kg (approximately)
Power Requirements 32 amp, 415v, 3 phase +N +E

Features

  • Table size 10.5m x 0.8m (Standard size)
  • Pneumatic floor jigging
  • Safety laser beam
  • Bell Crank pressing action
  • Jigging depth range 200mm – 640mm
  • Overhead structure to store metal webs and nail plates

Options

  • Customised table length (built to order)
