Strut Hanger

Search

Overview

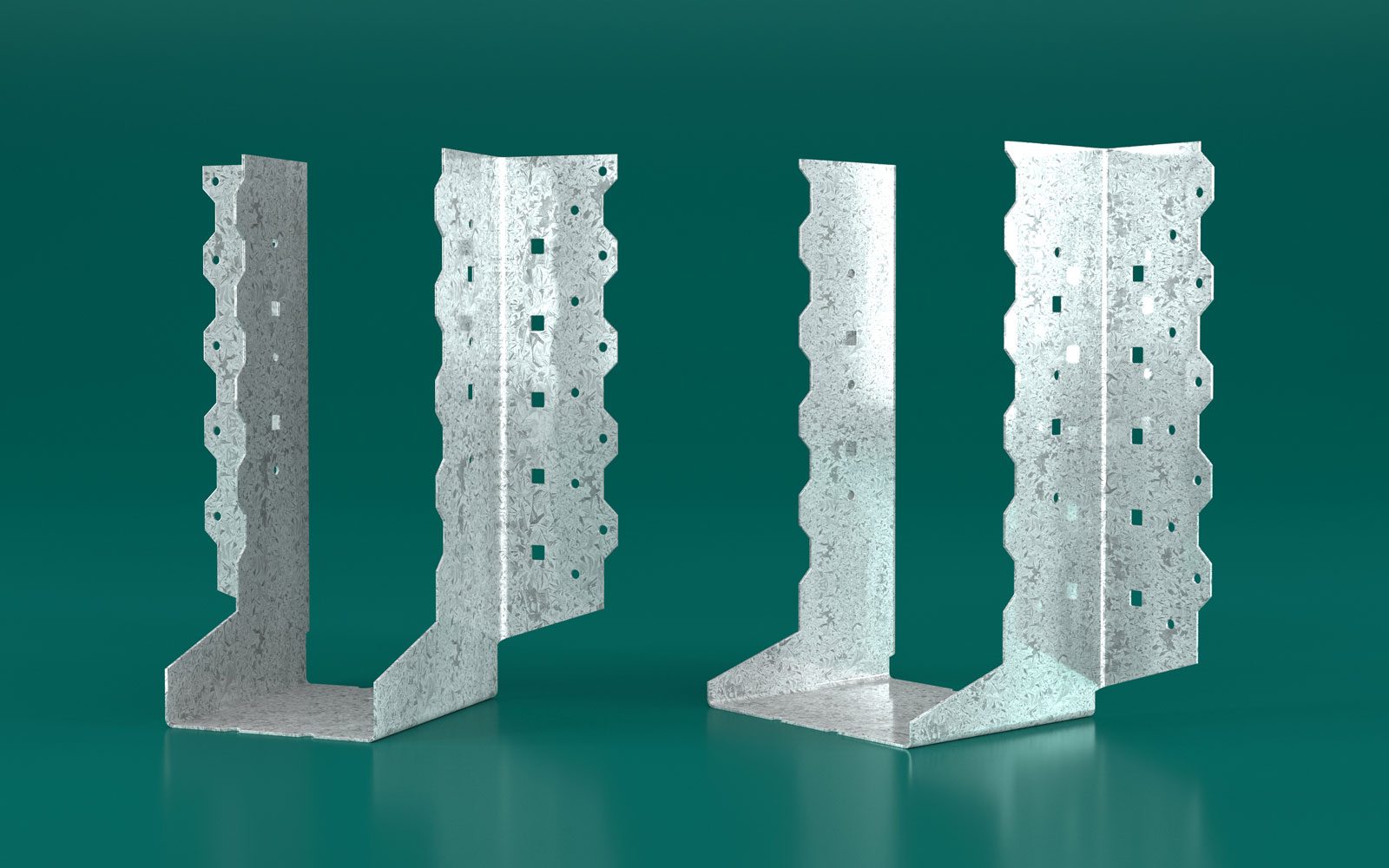

Multinail Strut Hanger has been specially designed for use with SpanJoist, EcoJoist®, MultiStrut and SteelWood® floor joists.

Benefits of Strut Hanger

Versatile joist fixing solution engineered to provide an economical and effective means for fixing floor joists to bearers where face fastening is required.

  • Fastens SpanJoist, EcoJoist®, MultiStrut and SteelWood® floor joists to the face of beams
  • Fast and easy fixing methods with both nail and screw options
  • Available in a range of sizes to suit typical timber dimensions
  • Formed from prime quality galvanised steel
  • Made in Australia



View Product Brochure

Installation – Nail Option

  1. Mark the location of Strut Hanger on the bearer or beam.
  2. Position Strut Hanger against bearer and fix all round holes with total of 20/30mm x ∅2.8 Multinail nails.
  3. Fit floor joists hard against the bearer or beam and fix all round holes with total of 6/30mm x ∅2.8 Multinail nails to MultiStrut joist, EcoJoist®, SteelWood® joist or SpanJoist.
  4. Secure floor joist to Strut Hanger with 1/30mm x 2.8∅ Multinail nail or 1/30mm x No.6 Type 17 screw underneath.

Installation – Screw Option

  1. Mark the location of Strut Hanger on the bearer or beam.
  2. Position Strut Hanger against bearer and fix all square holes with total of 10/35mm Green Tip #12 screws.
  3. Fit floor joists hard against the bearer or beam and fix all square holes with total of 4/35mm Green Tip #12 screws to MultiStrut joist, EcoJoist®, SteelWood® joist or SpanJoist.
  4. Secure the floor joist to Strut Hanger with 1/30mm x 2.8∅ Multinail nail or 1/30mm x No.6 Type 17 screw underneath.

Note: For timber bearer or beam where thickness is greater than 70mm, use 65mm Green Tip #12 Screws at bearer or beam support.

LIMIT STATE DESIGN LOAD

<
Timber Joint Group 20/2.8∅ Multinail nails or 10/Green Tip #12 screws (kN) 6/2.8∅ Multinail nails or 4/Green Tip #12 screws (kN)
Dead Load Dead Load + Floor Live Load Dead Load + Roof Live Load Dead Load + Wind Load
JD3  9.7 11.8 13.1 6.5
JD4  7.0 8.4 9.4 4.6
JD5  5.7 6.9 7.7 3.8

NOTE: Limit state design capacities are obtained from laboratory testing and derived from AS1720.1 for houses where failure is unlikely to affect an area greater than 25m2. For primary elements in structures other than houses or elements in a house for which failure would be greater than 25m2 these capacities must be multiplied by 0.94. For primary joints in essential services or post disaster buildings multiply by 0.88.

DESCRIPTION AND PACKAGING

DESCRIPTION AND PACKAGING

Steel: G300 Steel, Z275, 1mm Thickness

Description H x L x H
(Actual size)		 Product Code Reference Code Carton quantity Carton kg.
180 x 70 x 180 TA019 TA019 30 12.8
180 x 90 x 180 TA027 TA027 30 12.8
TA302 30mm x 2.8∅ Multinail Nails
TA221 35mm Green Tip Screw
TA222 65mm Green Tip Screw
