Nail On Plate
Overview
G05-14-00-00

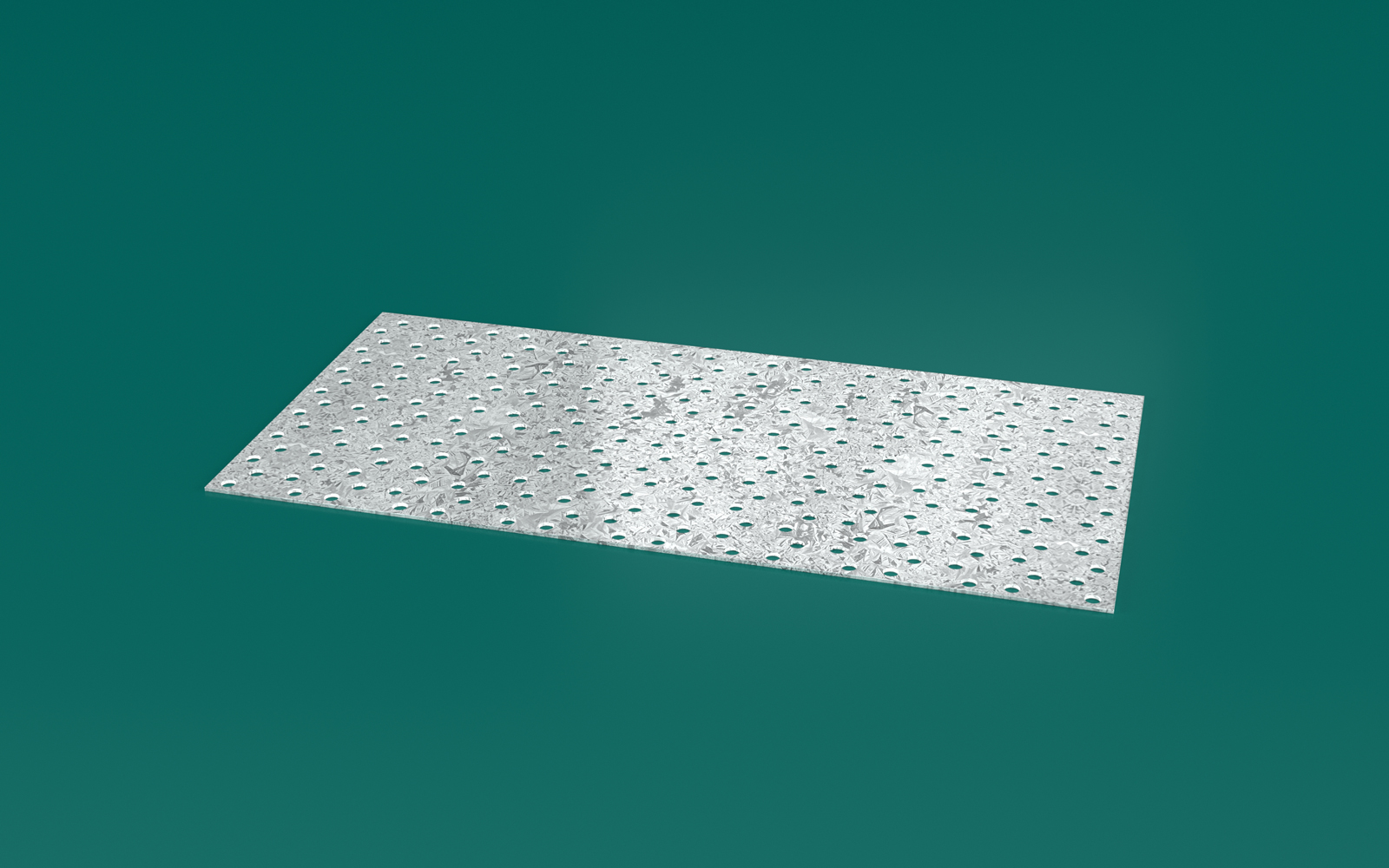

Strong timber connector for joining larger timber sections.
These pre-punched and formed galvanised steel timber connectors are ideal for:
Joining timber side by side and for butting timber members together.
Formwork, house frames and joining wall frames at top plate level.
Strengthening and repairing timber structures on site.
TYPICAL APPLICATIONS
Nail On Plates are ideal for home construction, extensions, garages and agricultural constructions.
Strength is obtained by nailing 30 x 2.8mm Multinail nails through the holes.
LIMIT STATE DESIGN LOAD
Steel Design Capacity
for two (2) plates: (N/mm)
Tension: 330
Shear: 255
| Limit State Design Capacity (N/effective nail) | ||||||
|---|---|---|---|---|---|---|
| JOINT GROUP | J2 | J3 | J4 | JD3 | JD4 | JD5 |
| Dead Load | 541 | 387 | 273 | 541 | 387 | 317 |
| Dead Load + Roof Live Load | 730 | 522 | 369 | 730 | 522 | 428 |
| Dead Load + Wind Load | 1085 | 776 | 548 | 1085 | 776 | 633 |
NOTES:
- Nails must be placed no closer than 50mm along the grain.
- Nails must be placed no closer than 15mm across the grain.
- Minimum nail distance to edge of timber is 15mm.
- Minimum nail distance to end of timber is 50mm.
NOTES: The uplift in capacities are derived from AS1720-2010 and are for houses where failure is unlikely to affect an area greater than 25m2. For primary elements in structures other than houses or elements in a house for which failure would be greater than 25m2 these capacities must be multiplied by 0.94. For primary joints in essential services or post disaster buildings multiply by 0.88.
DESCRIPTION AND PACKAGING
Manufactured from 1.0mm Galvanised G300 Z275 Steel
| Description | Product Code | Reference Code | Carton quantity | Carton kg. |
|---|---|---|---|---|
| 64 x 150 x 1.0 | TA107 | NOP064150 | 100 | 8.3 |
| 75 x 150 x 1.0 | TA103 | NOP075150 | 50 | 5.0 |
| 75 x 200 x 1.0 | TA98 | NOP075200 | 50 | 6.6 |
| 75 x 375 x 1.0 | TA265 | NOP075375 | 20 | 5.0 |
| 100 x 200 x 1.0 | TA108 | NOP100200 | 50 | 8.8 |
| 125 x 150 x 1.0 | TA109 | NOP125150 | 50 | 8.2 |
| 125 x 200 x 1.0 | TA100 | NOP125200 | 50 | 11.0 |
| 150 x 200 x 1.0 | TA101 | NOP150200 | 30 | 8.0 |
| 30mm x 2.8Ø Multinail Nails (TA302) | ||||
