Multi Grip
Overview

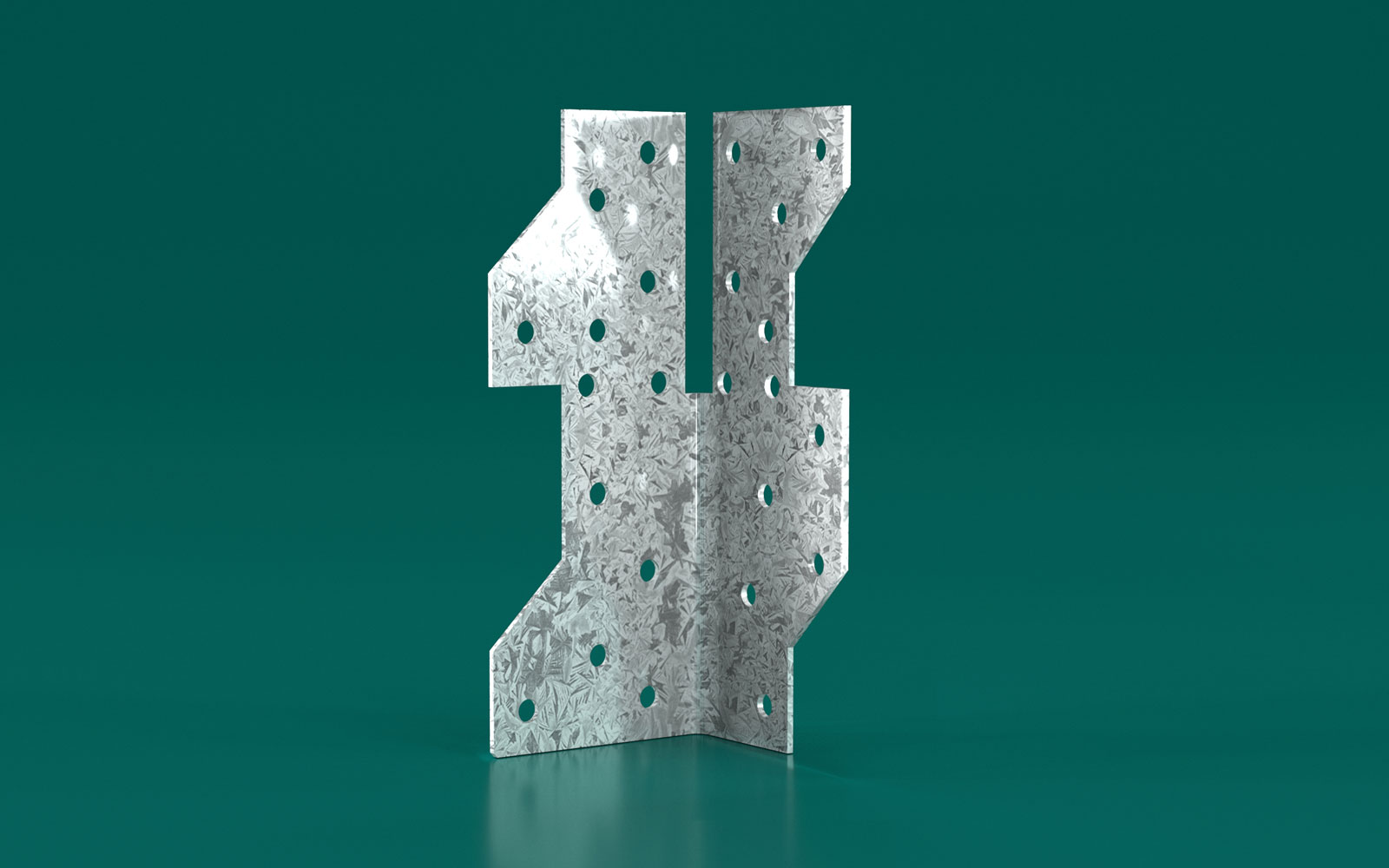

Multi use connecting ancillary used to simplify structural joining in timber roof, wall, ceiling and floor framing.
Pre-punched and formed galvanised steel timber connectors ideal for:
- Tying down trusses for structures located in an area of relatively low wind loading.
- Suitable for connecting studs to wall plates, timber braces to roof trusses or for face fixing beams.
- Joining timber components rapidly and efficiently.
APPLICATION
Option A
Jack flyovers to truncated truss
Ceiling joist to hanging beam
Studs to bottom plates
Truss to top plate
| Joint group | Tie down Capacity (kN) per Multi Grip Dead load + Wind load |
|---|---|
| J2 | 4.3 |
| J3 | 3.1 |
| J4 | 2.2 |
| JD3 | 4.3 |
| JD4 | 3.1 |
| JD5 | 2.5 |
NOTES: The capacities are derived from AS1720-2010 and are for uplift in houses where failure is unlikely to affect an area greater than 25m2. For primary elements in structures other than houses or elements in a house for which failure would be greater than 25m2 these capacities must be multiplied by 0.94. For primary joints in essential services or post disaster buildings multiply by 0.88. For 2/Multi Grips the above values can be doubled.
Option B
| Joint Group | Capacity (kN) per Multi Grip | |||
|---|---|---|---|---|
| Dead load | Dead load + Floor LL | Dead Load + Roof LL | Dead Load + Wind Load | |
| J2 | 2.2 | 2.7 | 3.0 | 5.4 |
| J3 | 1.6 | 2.0 | 2.1 | 3.8 |
| J4 | 1.1 | 1.3 | 1.5 | 2.7 |
| JD3 | 2.2 | 2.7 | 3.0 | 5.4 |
| JD4 | 1.6 | 2.0 | 2.1 | 3.8 |
| JD5 | 1.3 | 1.6 | 1.7 | 3.2 |
FIXING AND BENDING
Multi Grips should be secured with at least 10/30mm x 2.8Ø Multinail nails. You can bend the bottom legs to suit a variety of applications as shown in Option A
DESCRIPTION AND PACKAGING
Manufactured from 1.0mm Galvanised G300 Z275 Steel
| Product Code | Carton Quantity | Carton Kg. | ||
|---|---|---|---|---|
| TA402 | 200 | 8.0 | ||
| TA404 | 400 | 16.0 | ||
| 30mm x 2.8Ø Multinail Nails (TA302) | ||||
