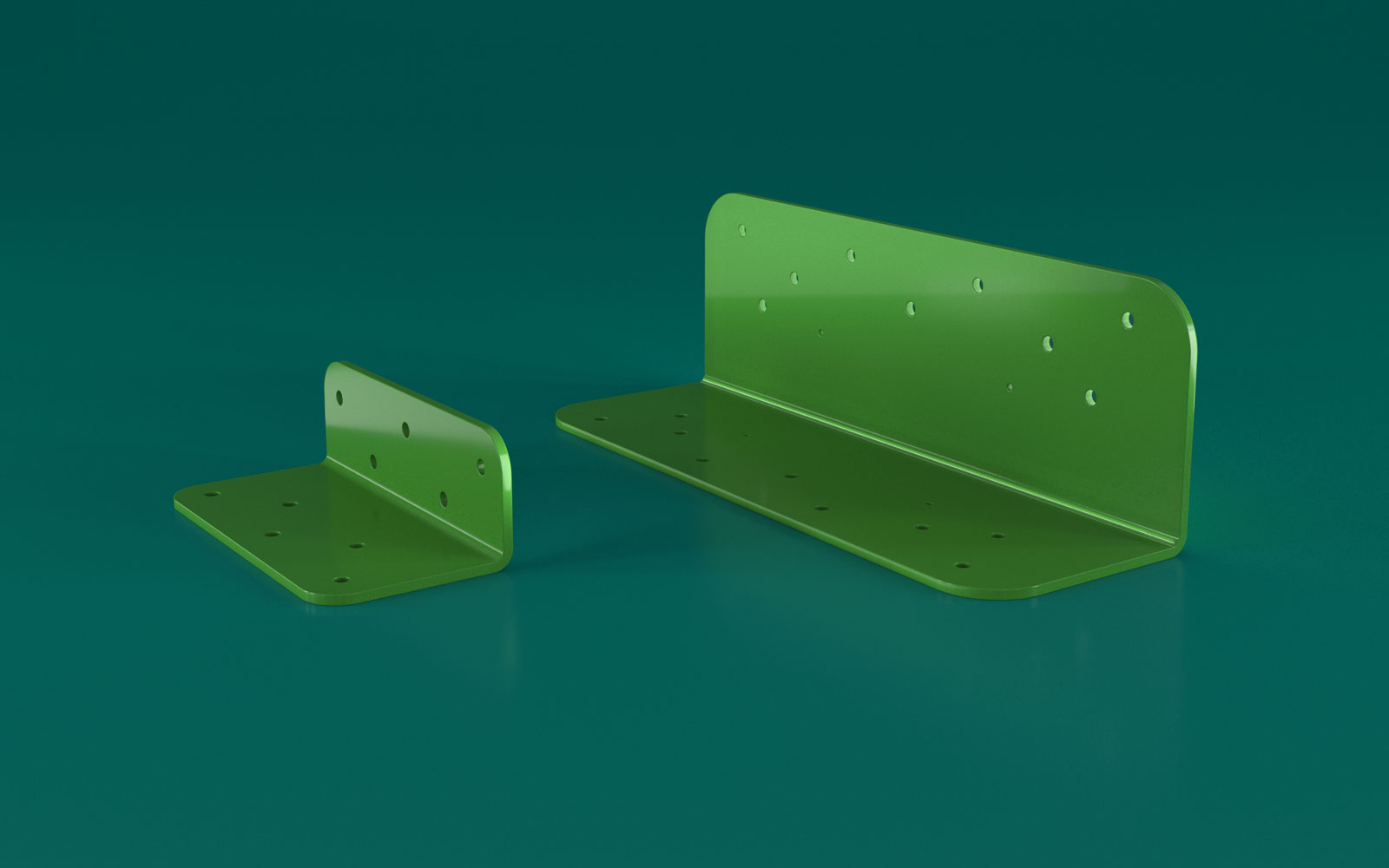

Multi Angle Bracket



Universal connector used to simplify structural joining in timber roof, wall, ceiling and floor framing.

Formed galvanised steel timber connectors ideal for:

  • Fixing members and products at various angles.
  • Fixing joist to beams at various angles.
  • Fixing trusses to girders at various angles.


Supporting at Angle

Attach Multi Angle Bracket to beam or girder truss with Green Tip #12 screws. Supporting member to be minimum 35mm deep.  Notch out bottom of carried member 5 mm if required, and fit to Multi Angle with 1/ Number 12 counter-sunk screw from underneath minimum 35mm long.

Right Angle Support

Butt members together and attach Multi Angle with Green Tip #12 screws in each member. Ensure adequate end distance is achieved by having long edge fixed to butt end.

Minimum timber edge distance for screws = 30mm
Minimum timber end distance for screws = 60mm

Supporting at angles

Right angle support


  • Do not over tighten screws
  • Pre-drill holes for hardwood
  • Capacities can be doubled for 2 angles if supported member is greater than 70mm thick


Number Screws Joint Group Capacity (kN)
Dead load Dead load + Floor LL Dead Load + Roof LL Dead Load + Wind Load DL +WL for 1 screw from underneath
5 JD3 8.6 10.4 11.6 17.3 2.5
JD4 6.1 7.4 8.2 12.2 1.9
JD5 4.3 5.2 5.8 8.6 1.5
6 JD3 10.3 12.5 14.0 20.7 2.5
JD4 7.3 8.9 9.9 14.7 1.9
JD5 5.2 6.3 7.0 10.4 1.5

NOTES: The uplift in capacities are derived from AS1720-2010 and are for houses where failure is unlikely to affect an area greater than 25m2. For primary elements in structures other than houses or elements in a house for which failure would be greater than 25m2 these capacities must be multiplied by 0.94. For primary joints in essential services or post disaster buildings multiply by 0.88.


Manufactured from 4.0mm Galvanised G300

Product Code Size Quantity Carton Kg.
MNMAB-150 75 x 50 x 150 x 4mm 1 0.5
MNMAB-300 100 x 100 x 300 x 4mm 1 1.7
35mm Green Tip #12 Screw (TA221), 65mm Green Tip #12 Screw (TA222)
