G05-12-00-00

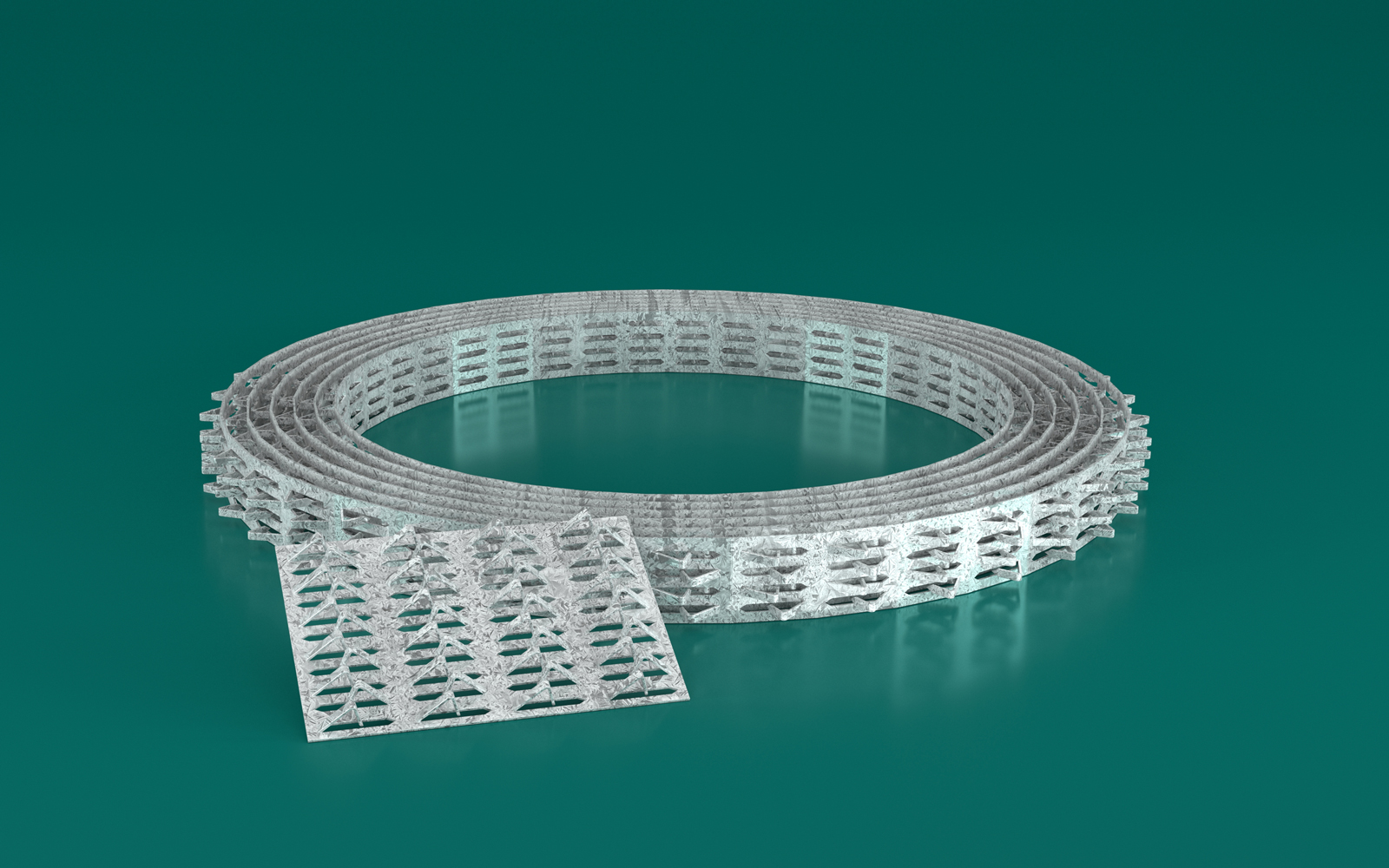

Formed galvanised steel connectors ideal for joining wall plates in timber wall frames on site, using a carpenter’s hammer.

These formed galvanised steel timber connectors are ideal for:
On site joining of wall frames, engineered designed trusses and splicing timber beams.
General connections such as reinforcing boxes and bolted joints.End protection for scaffold planks.
Locknails require no special equipment and can be applied on site.

View Product Brochure

APPLICATIONS

Applying the Locknail is very simple as no special pressing equipment is needed.
The Locknail’s teeth can be driven into a piece of timber using a normal carpenter’s hammer on site by tradespersons, home owners and builders.

Locknails are suitable for all softwoods and some unseasoned hardwood timbers. Difficulty may be experienced when driving into seasoned hardwood and some unseasoned hardwood timber.

Step 1

Position the Locknail central to where the two pieces of timber meet.

Step 2

Using a carpenter’s hammer, drive the protruding teeth into the timber. For butt joining, turn the timber over and repeat the process on the other side.

Step 3

The Locknail teeth should now be embedded securely into the timber, subsequently joining the two separate pieces of timber together.

LIMIT STATE DESIGN LOADS

Design Load Capacity Nj (N) per Tooth
Load JD4
Dead 131
Dead + Roof Live 177
Dead + Wind 299

NOTES: The uplift in capacities are derived from AS1720-2010 and are for houses where failure is unlikely to affect an area greater than 25m2. For primary elements in structures other than houses or elements in a house for which failure would be greater than 25m2 these capacities must be multiplied by 0.94. For primary joints in essential services or post disaster buildings multiply by 0.88.

DESIGN

In timber joint design, nails within 6mm of timber edges or within 12mm of timber ends are regarded as ineffective. As the nail rows in the Locknail are 32mm apart, all nails, fixed symmetrical over the joint are effective.

DESCRIPTION AND PACKAGING

Manufactured from 1.0mm Galvanised G300 Z275 Steel

Plates

Description (W x L) Product Code Reference Code Carton quantity Carton kg.
33 x 127mm TA661 LNP033127 267 10
33x 190mm TA662 LNP033190 178 10
44 x 63mm TA663 LNP044063 400 10
44 x 127mm TA664 LNP044127 200 10
44 x 190mm TA665 LNP044190 133 10
44 x 222mm TA666 LNP044222 114 10
44 x 254mm TA667 LNP044254 100 10
44 x 317mm TA668 LNP044317 80 10
67 x 63mm TA669 LNP067063 262 10
67 x 127mm TA670 LNP067127 131 10
67 x 190mm TA671 LNP067190 87 10
67 x 222mm TA672 LNP067222 74 10
67 x 254mm TA673 LNP067254 65 10
89 x 63mm TA674 LNP089063 200 10
89 x 127mm TA675 LNP089127 100 10
89 x 190mm TA676 LNP089190 66 10
89 x 254mm TA677 LNP089254 50 10
89 x 317mm TA678 LNP089317 40 10
89 x 380mm TA679 LNP089380 33 10
133 x 63mm TA680 LNP133063 133 10
133 x 127mm TA681 LNP133127 66 10
133 x 190mm TA682 LNP133190 44 10
133 x 254mm TA683 LNP133254 33 10
133 x 317mm TA684 LNP133317 27 10
133 x 380mm TA685 LNP133380 22 10

Rolls

Description (W x L) Product Code Reference Code Carton quantity Carton kg.
33 x 15000mm TA686 LNR033150 1 4.1
44 x 15000mm TA687 LNR044150 1 5.4
67 x 15000mm TA688 LNR067150 1 8.2
88 x 15000mm TA689 LNR088150 1 10.8
133 x 15000mm TA690 LNR133150 1 16.3
