Overview

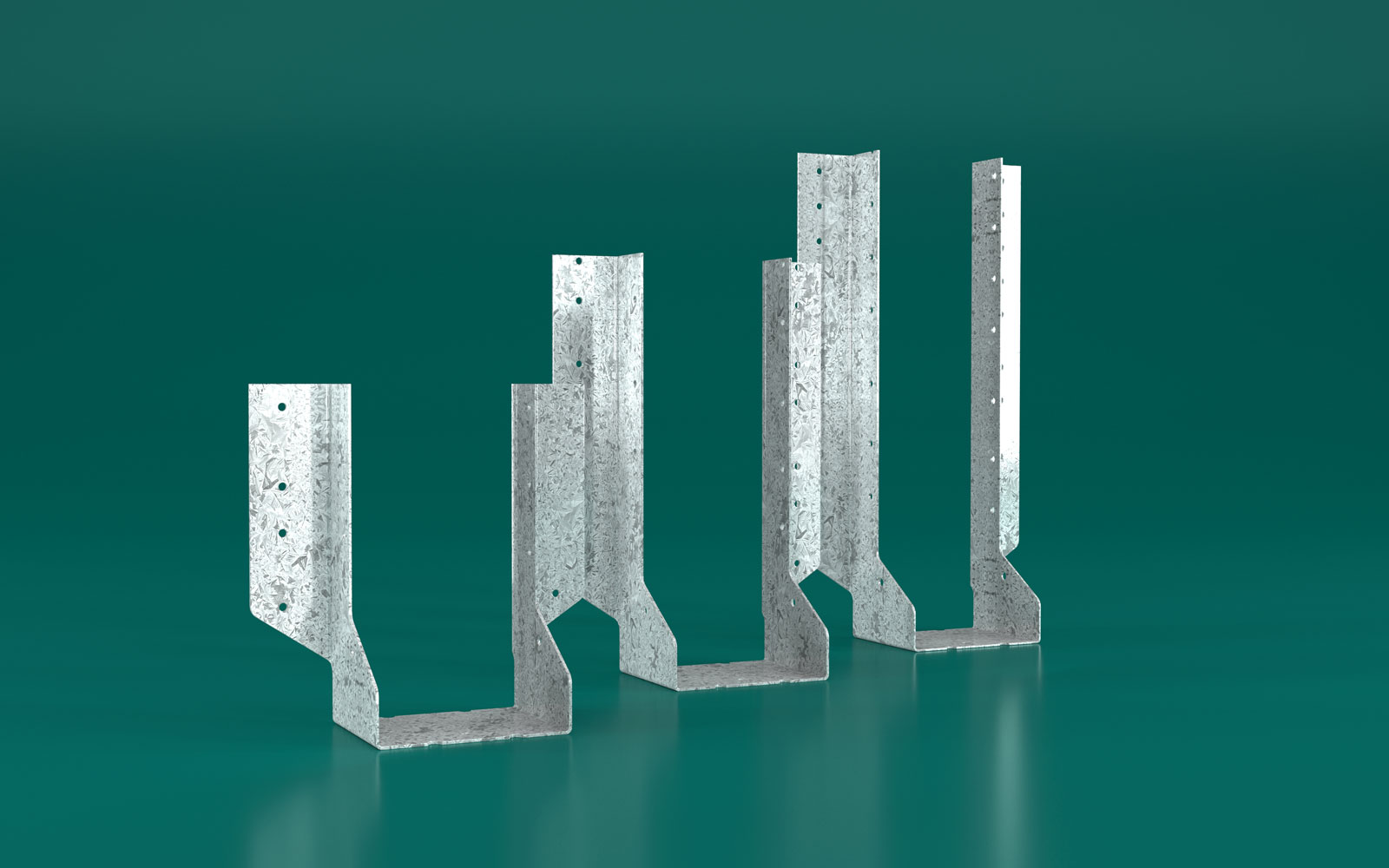

These pre-punched and formed galvanised steel timber connectors are ideal for fastening I-Joists to the face of beams or bearers.

APPLICATION - FACE MOUNTED

Designed for residential and normal loaded I-joist applications, the Multinail I Beam Hanger allows flexibility in fastening by using nails. A screw secure fixing into the joist bottom flange holds the joist in position and prevents timber joist squeaking.

The I Beam Hanger is easy to install. Simply use 12/40mm x 3.75Ø galvanised nails, 6 nails through each wing, for face mounted hanger. Use one 30mm-No.6 Type 17 bugle head screw through bottom hole to hold joist in position.

Multinail Face Mounted I Beam Hanger secured full height of I-Joist to beam/bearer using galvanised nails.

Multinail recommends fixing 30mm-No.6 Type 17 bugle head screw through the I Beam Hanger bottom hole to joist bottom plate.

LIMIT STATE DESIGN LOADS

The following table gives the recommended Limit State Design capacities for Multinail I Beam Hangers. Design capacities are for use in limit state design procedures to AS1720.1-2010

Maximum Limit State Design Capacities (kN) for I Beam Hangers – Face Mounted
Total Nails to support Load Combination Joint Group
J2/JD3 J3/JD4 JD5
8 Nails Dead Load 7.2 5.2 4.3
8 Nails Dead Load + Floor Live Load 8.7 6.2 5.2
10 Nails Dead Load 9.0 6.4 5.3
10 Nails Dead Load + Floor Live Load 10.9 7.8 6.4
12 Nails Dead Load 10.8 7.7 6.4
12 Nails Dead Load + Floor Live Load 13.1 9.4 7.7
14 Nails Dead Load 12.6 9.0 7.4
14 Nails Dead Load + Floor Live Load 15.2 10.9 9.0

200mm deep hangers require 8 nails per hanger

240mm deep hangers require 10 nails per hanger

300mm deep hangers require 12 nails per hanger

350mm deep hangers require 14 nails per hanger



NOTE: The capacities are derived from AS1720-2010 and are for uplift in houses where failure is unlikely to affect an area greater than 25m2. For primary elements in structures other than houses or elements in a house for which failure would be greater than 25m2 these capacities must be multiplied by 0.94. For primary joints in essential services or post disaster buildings multiply by 0.88.

DESCRIPTION AND PACKAGING

Manufactured from 1.2mm Galvanised G300 Z275 Steel

I Beam Hangers – Face Mounted

Product Code Description Carton Quantity Carton Kg.
IBF24040 238.5 x 42mm 25 6.4
IBF30040 299 x 42mm 25 7.9
IBF20044 190 x 45mm 25 5.2
IBF24045 237 x 45mm 25 6.4
IBF30045 297.5 x 45mm 25 7.8
IBF24051 234.5 x 50mm 25 6.4
IBF30051 295 x 50mm 25 7.8
IBF24053 233 x 53mm 25 6.4
IBF30053 293.5 x 53mm 25 7.9
IBF35653 351 x 53mm 25 9.2
IBF30060  289.5 x 60mm 25 7.9
IBF34760 347.5 x 60mm 25 9.2
IBF24563 236.5 x 63mm 25 6.6
IBF18065 180 x 65mm 25 5.2
IBF24063 235.5 x 65mm 25 6.6
IBF30063 287.5 x 65mm 25 7.8
IBF36063 345 x 65mm 25 9.2
IBF24070 233 x 70mm 25 6.6
IBF30070 285 x 70mm 25 7.8
IBF35670 352.5 x 70mm 25 9.5
IBF40670 400 x 70mm 25 10.6
IBF24090 235 x 90mm 25 6.9
IBF30090 290 x 90mm 25 8.2
IBF36090 342.5 x 90mm 25 9.5
IBF40090 390 x 90mm 25 10.6
