High Load Truss Boots

Search

Overview

Steel girder brackets for connecting girder trusses to the bottom chord of primary girder trusses.

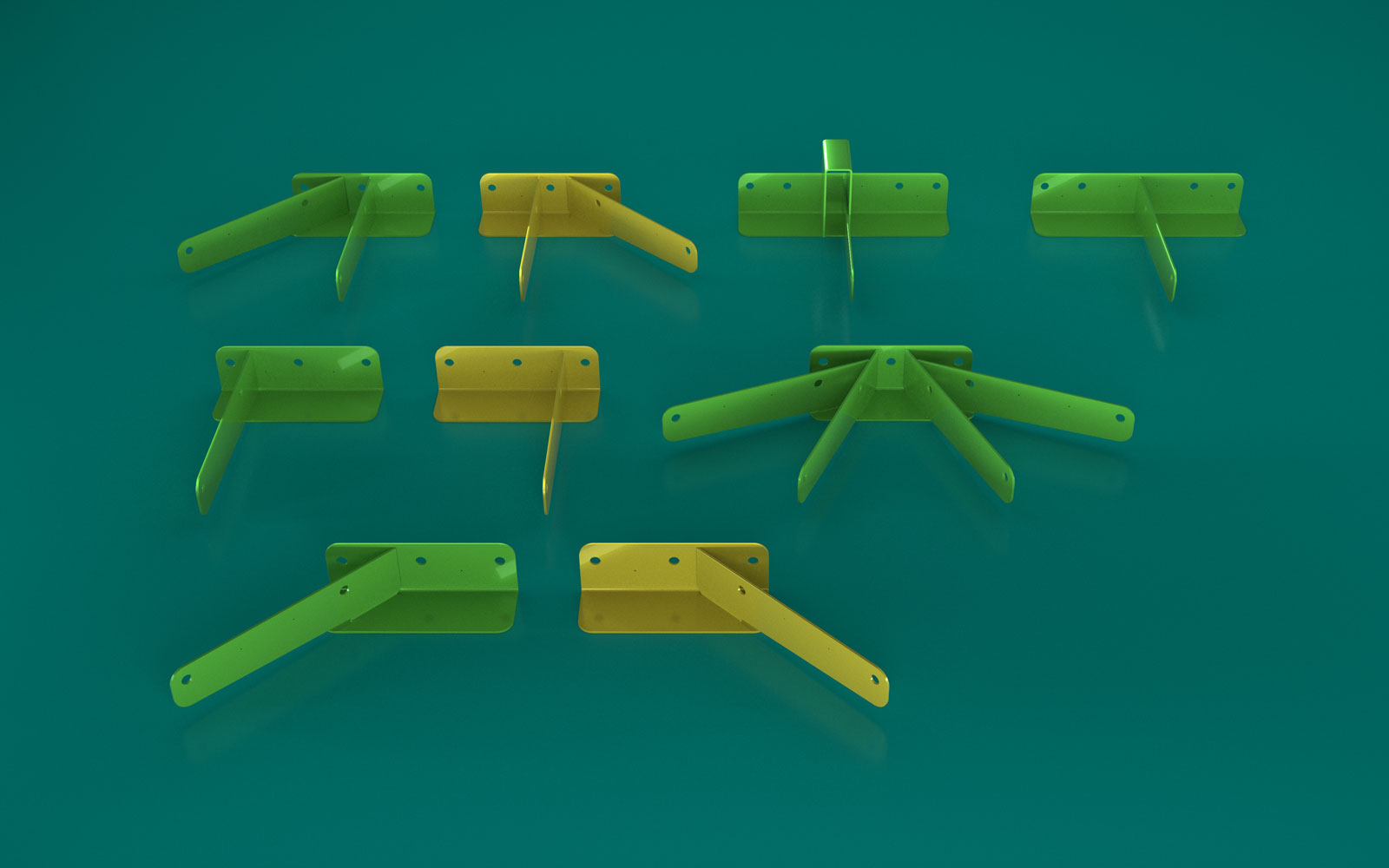

These steel girder brackets are available in various configurations.

High Load Truss Boots assist in the tie down of trusses in high wind uplift areas. The extra clip dramatically improves the tie down value.

View Product Brochure

APPLICATION

  1. Place the High Load Truss Boot in the correct position and drill holes into the bottom chord of the girder truss to suit M16 Multinail Hex Head bolts.
  2. Align the bolt holes of the High Load Truss Boot to the bolt holes in the girder truss and install the M16 Multinail Hex Head bolts with the correct size washers.
  3. Place the supported truss on the bracket and drill holes into the supported truss to suit the required Multinail Hex Head bolts.
  4. Align the bolt holes of the High Load Truss Boot to the bolt holes in the supported truss and install the required Multinail Hex Head bolts with the correct size washers.
  5. Tighten all bolts before loading with roof materials.

LIMIT STATE DESIGN LOADS

Timber Joint Group Girder or Std Truss Thickness Load Combination Values (Kn)
3 x M16 Bolts 4 x M16 Bolts 2 x M12 Bolts 2 x M16 Bolts
Dead Load Dead Load + Live Load Dead Load Dead Load + Live Load Dead Load + Wind Load Dead Load + Wind Load
JD3 35 13.8 18.7 18.4 24.9 13.8 18.4
45 17.8 24.0 23.7 32.0 17.8 23.7
2/35 23.7 32.0 31.6 42.7 20.5 31.6
JD4 35 10.2 13.7 13.6 18.3 10.2 13.5
45 13.1 17.7 17.4 23.6 13.1 17.4
2/35 17.4 23.5 23.3 31.4 17.1 23.2
JD5 35 7.3 9.8 9.8 13.2 7.3 9.7
45 9.4 12.7 12.5 17.0 9.4 12.5
2/35 12.5 17.0 16.7 22.6 12.5 16.7

NOTE:

  • Capacities as per AS1720.1 for bolt shear and testing.
  • For all other joint group capacities contact Multinail Australia Pty Ltd.
  • For uplift, use minimum joint group of girder and carried truss.

APPLICATION WITH CLIP

  1. Place the High Load Truss Boot in the correct position and drill holes into the bottom chord of the girder truss to suit the 4/M16 Multinail Hex Head bolts.
  2. Align the bolt holes of the High Load Truss Boot to the bolt holes in the girder truss and install the M16 Multinail Hex Head bolts with the correct size washers.
  3. Place the supported truss on the bracket and drill holes into the supported truss to suit the 2/M16 Multinail Hex Head bolts.
  4. Align the bolt holes of the High Load Truss Boot to the bolt holes in the supported truss, clip and install the M16 Multinail Hex Head bolts with the correct size washers.
  5. Neatly insert timber wedge between clip and truss heel to ensure full bearing.
  6. Tighten all bolts before loading with roof materials.

NOTE:

  • The supported truss bottom chord may be rebated by 4mm for a length of 96mm.
  • For a better fit, truss can be designed with a 4mm cutoff.
  • Minimum girder bottom chord size is 130mm.
  • Temporary bracing is required during installation.
  • Minimum end distance for bolts is five (5) times the bolt diameter.
  • Values DL + LL are for roof live loads. Based on K1 = 0.77.
  • Bolts and washers to be installed as per AS1720.1-2010.
  • Timber wedge to be minimum same grade as top chord of carried truss.

LIMIT STATE DESIGN LOADS

Timber Joint Group Girder or Std Truss Thickness Load Combination Values (Kn)
4 x M16 Bolts 2 x M16 Bolts With Clip
Dead Load Dead Load + Live Load Dead Load + Wind Load Dead Load + Wind Load
JD3 35 18.4 24.9 24.4 36.9
45 23.7 32.0 31.4 47.4
2/35 31.6 42.7 33.5 63.2
JD4 35 13.6 18.3 18.4 27.2
45 17.4 23.6 23.7 34.8
2/35 23.3 31.4 31.6 46.6
JD5 35 9.8 13.2 9.7 19.4
45 12.5 17.0 12.5 25.0
2/35 16.7 22.6 16.7 33.4

NOTE:

  • Capacities as per AS1720.1 for bolt shear.
  • For all other joint group capacities contact Multinail Australia Pty Ltd.
  • For uplift, use minimum joint group of girder and carried truss.

DESCRIPTION AND PACKAGING

Manufactured from 4.0mm Steel

Description Product Code Quantity Kg.
45°LH TA157 1 2.80
45°RH TA158 1 2.80
45/90°LH TA063 1 3.82
45/90°RH TA067 1 3.82
Fan Hip End TB TA073 1 5.85
LH TA056 1 2.80
RH TA009 1 2.80
Universal HLTB TA404 1 3.65
Universal HLTB with Clip TA410 1 4.64
M12 x 65mm Bolt (TA091), M12 x 100mm Bolt (TA092),
M16 x 65mm Bolt (TA114), M16 x 100mm Bolt (TA115), M16 x 150mm Bolt (TA089)
