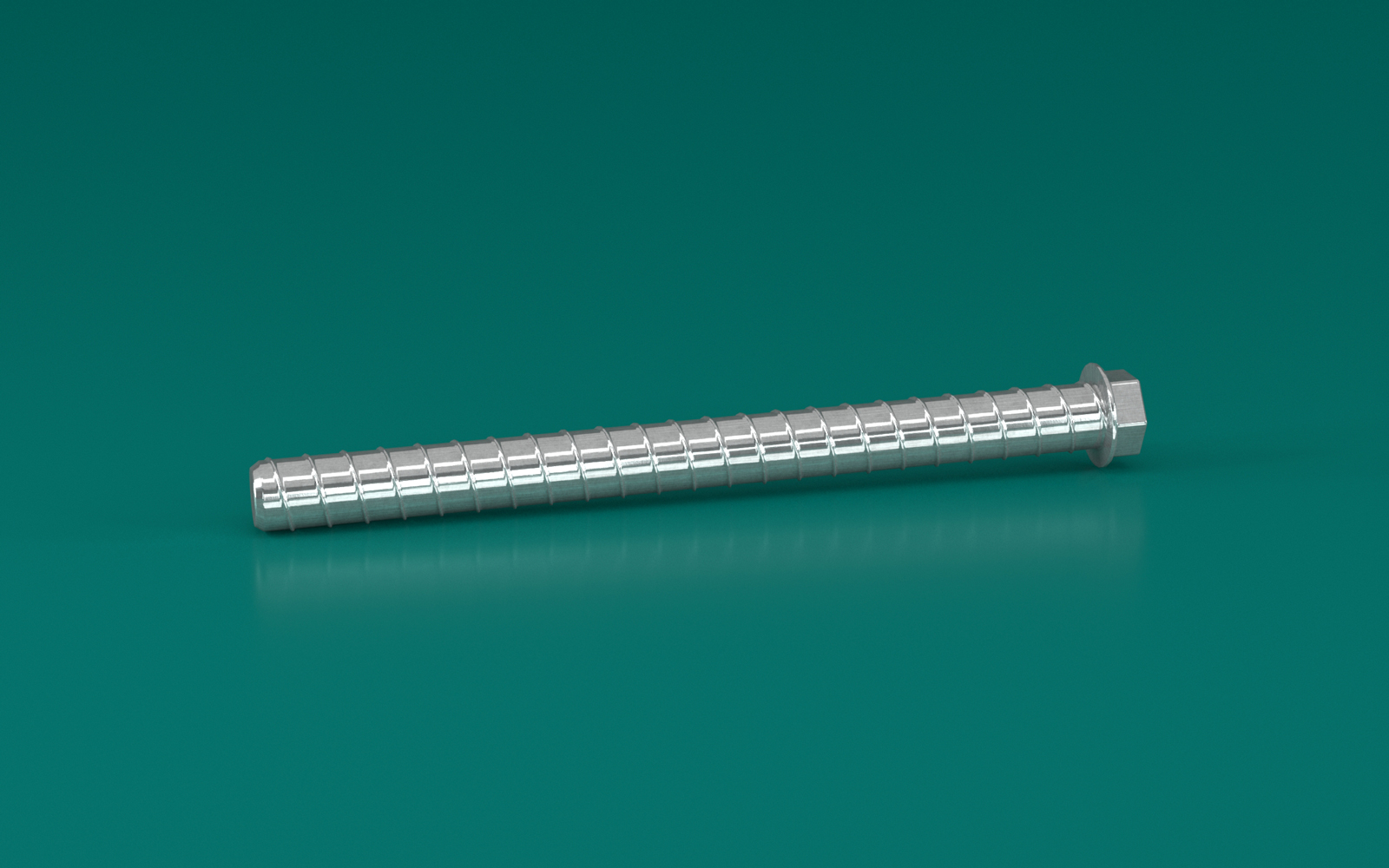

Concrete Screw Anchor



High capacity threaded Concrete Screws are ideal for providing a quick heavy duty fixing.  They are vibration and shock resistance, and require less spacing and edge-distance.


  1. Drill a hole in the base material using a carbide drill bit the same diameter as the nominal diameter of the anchor to be installed. Drill the hole to the specified embedment depth plus 12 mm minimum to allow the thread tapping dust to settle
  2. Blow the hole clean using compressed air. Alternatively, drill the hole deep enough to accommodate embedment depth and dust from drilling and tapping.
  3. Insert the anchor through the fixture and into the hole. Use with Ø65 x 4mm washer
  4. Tighten the anchor into the base material until the hex washer head contacts the washer.
  • If the anchor will not install completely, remove the anchor and ensure that all dust has been evacuated or drill the hole deeper. Begin re-installation of the anchor by hand to prevent cross-threading.

Caution: Oversized holes in the base material will reduce or eliminate the mechanical interlock of the threads with the base material and will reduce the anchor’s load capacity.


The following table gives the recommended Limit State Design capacities for Concrete Screw Anchor.

Anchor Size Concrete Strength
Washer size
Minimum Edge
Distance (mm)
Embedment Depth
Limit State Design Uplift
Capacity (kN)
J2 J3 J4 JD4 JD5 JD6
12X110 20 50x50x3mm 35 73 6.2
12X110 20 50x50x3mm 45 73 7.8
12X150 20 50x50x3mm 35 95 7.4
12X150 20 50x50x3mm 45 95 7.8


Mechanically galvanised screw anchor

Product Code Size Carton Quantity Carton Kg.
SA12110 12x110mm 20 2.5
SA12150 12x150mm 20 3.4
Ø65 x 4mm Washer (TA280)
